Siemens GCA126.1E A Rotary air damper actuator

  • With self-centering shaft adapter for shaft dia. 8..25.6 mm, square 6...18 mm, min. shaft length 20 mm
  • With position indication and adjustable mechanical limit stop
  • Manual override
  • With housing made of die-cast aluminium and 0.9 m connecting cable

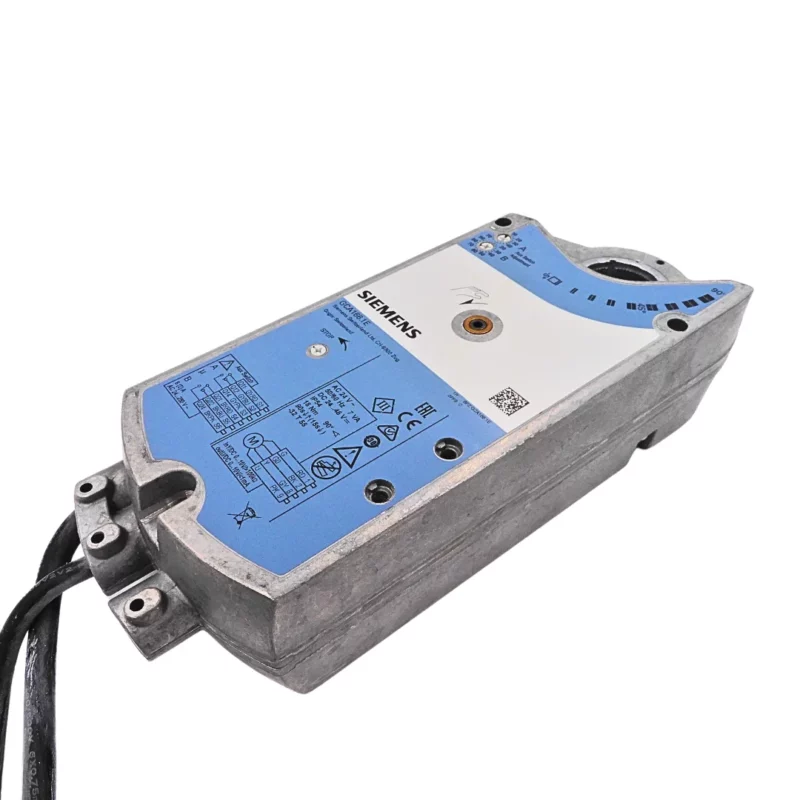

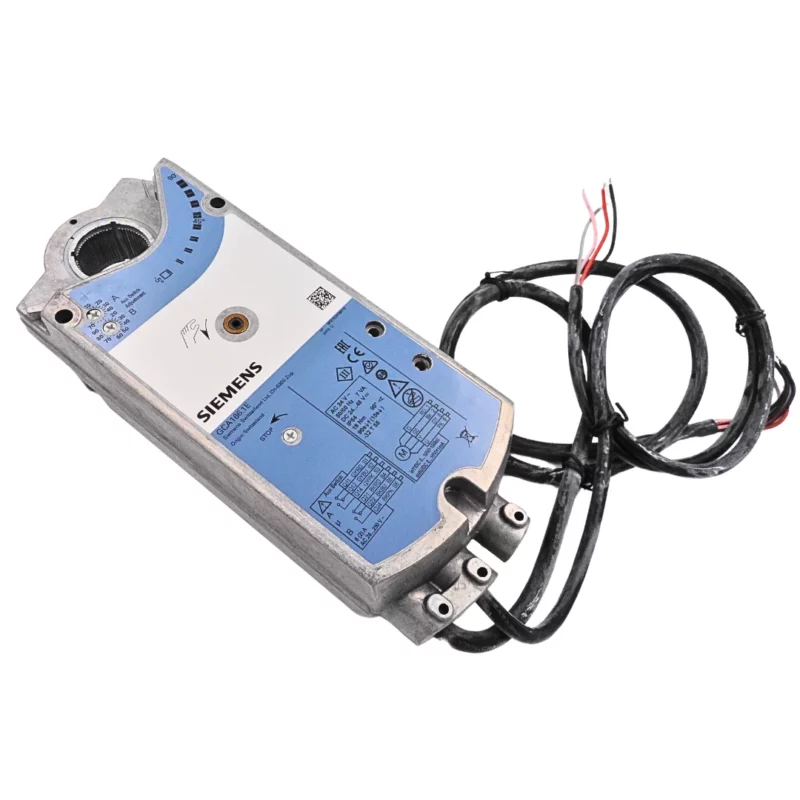

Siemens GCA166.1E A Rotary air damper actuator

  • With self-centering shaft adapter for shaft dia. 8..25.6 mm, square 6...18 mm, min. shaft length 20 mm
  • With position indication and adjustable mechanical limit stop
  • Manual override
  • With housing made of die-cast aluminium and 0.9 m connecting cable

Siemens GLB146.1E Rotary air damper actuator

  • For shaft dia. 8..16 mm, square 6...12 mm, min. shaft length 30 mm
  • With position indication and adjustable mechanical limit stop
  • Button for disengaging the gear train to enable manual override
  • With base made of steel, plastic housing and 0.9 m connecting cable

Siemens GLB161.1E Rotary air damper actuator

  • For shaft dia. 8..16 mm, square 6...12 mm, min. shaft length 30 mm
  • With position indication and adjustable mechanical limit stop
  • Button for disengaging the gear train to enable manual override
  • With base made of steel, plastic housing and 0.9 m connecting cable
