Sauermann Si-30 Piston Pump
Features of Si-30 Condensate Pump
- The high performance Si-30 is suitable for air-conditioning units up to 20 kW.
- The piston technology is specifically designed for removing condensates from air conditioning systems.
- The Si-30 is fully reliable, in any kind of environment.
- Its operating sound level will remain silent whatever the volume of condensates
Technical Specification
| Max. flow rate | 20 l/h |
| Max. suction head | 3m |
| Max discharge head | 10m (flow rate= 4l/h) |
| Max. pressure | 14 m (flow rate = 0 l/h) |
|
Sound level at 1m According to EN ISO 3744(Measured at LNE lab, pump operating with water, out of application) |
20 dBa |
| Mains supply | 230 V~ 50 Hz – 14 W |
| Insulation class | Double insulation |
| Detection levels | ON: 16 mm; OFF: 11 mm; Safety: 19 mm |
| Safety switch | NC 8 A resistive – 250 V |
| Thermal protection (overheating) | 115 °C (auto-reset) |
| Max. condensate temperature | 35 °C |
| Operating conditions | 100% - Continuous duty |
| Protection | IP20 |
| Safety standards | CE & EAC |
| RoHS directive | Compliant |
| WEEE directive | Compliant |
Patented technology
- Increased performance: Only one pump, for air conditioning unit up to 20 kW.
- High resistance to pollution created by general environment. Capable of discharging small particles.
- Proven Reliability.
- The Drain Safe Device retains prime and prolongs the pump life.
Energy saving
- Improved performance and high flow rate reduce operation time and energy consumption.
Silent
- Quiet in operation: 20 dBA independently tested.
- The size of the air-conditioning unit and volume of condensates to be removed does not affect the operational sound level of the pump.
- Mounting bracket specifically designed to reduce vibration transmission to the wall / panel or pipework.
Easy to install
- Compact design
- Mounting bracket: allows the pump to be wall mounted or hung from ceilings and pipework.
- Lockable plug-in power cord to avoid unintended disconnection.
Applications
For use with any air-conditioning units, up to 20 kW:- Wall mounted
- Ceiling suspended
- Ducted
- Fan-coils
Sauermann Si-82 Centrifugal Pumps
Made in France
Features
- The Si-82 pump is designed to be easily installed whatever the layout of the premises.
- Strong, the Si-82 tolerates charged, high temperature and acidic condensates (pH>2.5) produced by gas condensing boilers.
- Capable of evacuating up to 500 l/h, the Si-82 pump is suitable for air conditioning units and industrial refrigeration displays.
Technical Specification
| Max. flow rate | 500 l/h |
| Max. discharge head | 5m |
| Max pressure | 5.4 m - flow rate = 0 l/h |
| Sound level in application at 1 m (3.3 ft) (Measured in Sauermann acoustic lab, pump operating with water) | ≤ 45 dBA |
| Mains supply | 230 V~ 50 Hz – 70 W – 0.75 A |
| Detection levels | On: 53 mm, Off: 42 mm, Safety: 64 mm |
| Safety switch | NC 4 A resistive – 250 V |
| Max. condensate temperature | 65 °C, 80 °C in short peak |
| Max. condensate acidity | pH > 2.5 (Gas condensing boilers) |
| Thermal protection (overheating) | 105 °C (auto-reset) |
| Operating conditions | 30%: 3s ON – 7s OFF |
| Protection | IP20 |
| Safety standards | CE and EAC |
| RoHS directive | Compliant |
| WEEE directive | Compliant |
| Weight (including box) | 2.5kg |
| Packaging | 4 pcs: L 400 x W 300 x H 200 mm |
| Pallet quantity | 64 pieces |
High Performance
- Can discharge condensates up to 5 m
- Up to 500 l/h, for shorter running time
- Low sound level – quiet operation

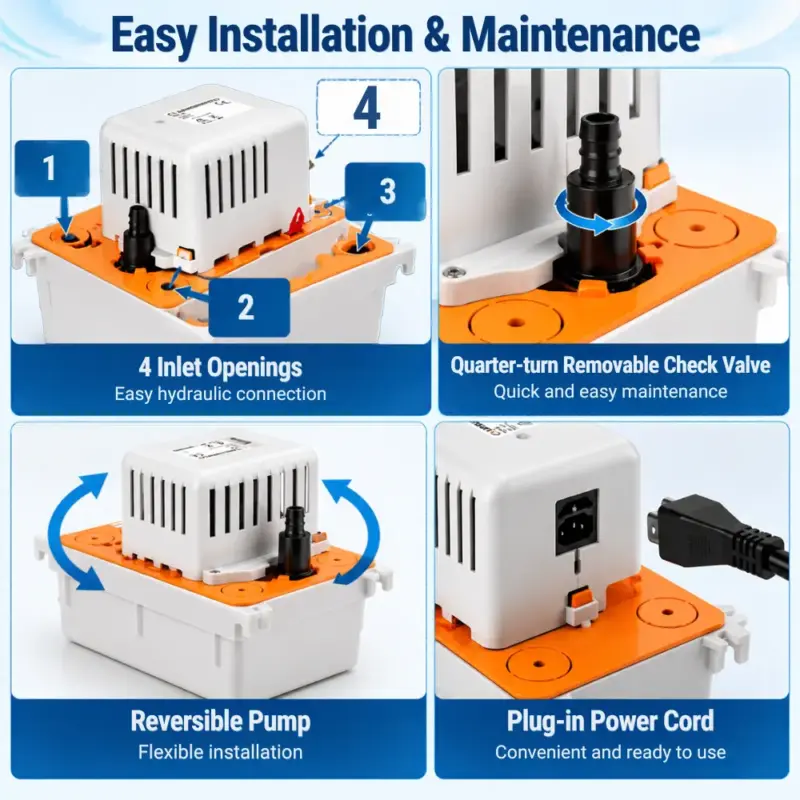

Easy hydraulic connection
- Quarter turn easily removable check valve, designed to facilitate Ø int. 10 mm (3/8”) hose plug in.
- 4 inlet holes Ø 30 mm (1” 3/16)
Easy electrical connection
- Plug-in power cord to facilitate installation and maintenance.
Applications
- Column air conditioning units
- Multi cassettes
- Ducted units
- Gas condensing boilers
- High efficiency gas furnace
- Refrigerating display cabinets
- Evaporators
Versatile
- Easily removable tank and reversible pump, to allow mounting rather on the left or on the right of the application and choosing the side of the water exit.
Installation in any place
- Pump can be floor mounted, attached on a wall or hanging from a ceiling.
High resistance
- Oil and acid resistant float
- Mechanical structure resistant to shocks
WIPCOOL P12 Slim Condensate Pump
Main Features
- Slimmest body design, flexible installation.
- Built-in safety switch, avoid the overflow when drainage failure
- Unique motor balance technology, reduce vibration.
Product Features
The P12 condensate pump adopts a slim body design and is WIPCOOL's slimmest mini pump. Specially designed for narrow spaces, it is mainly installed in the back interior of split air conditioners. It can also be applied in ducted air conditioners and cassette air conditioners. It is suitable for devices with a cooling capacity under 30,000 BTU/hr.
With a built-in safety switch and unique motor balance technology, the pump operates silently for extended periods and guarantees safe drainage.
| Model | P12 |
| Voltage | 100V-230V~/ 50-60Hz |
| Suction Lift(Max.) | 2m (6.5ft) |
| Discharge Head(Max.) | 7m (23ft) |
| Flow Rate(Max.) | 12L/h (3.2GPH) |
| Tank Capacity | 35 ml |
| Mini Splits up to | 30,000btu/hr |
| Sound Level at 1m | 19dB(A) |
| Ambient Temp. | 0ºC~50ºC |
Why Choose WIPCOOL Supermarket Condensate Pump
- Compact and Powerful
- Quite and Reliable
- Innovation driven
- Easy Maintenance
Mini Pump Series
WIPCOOL offers the most complete and high-performance range of mini pumps worldwide. They are widely applied in split, ducted-type, and cassette-type air conditioning units, as well as other appliances that produce small amounts of condensate.
Some items are equipped with a brushless motor, safety switch, and probe sensor, which maintain the pump's high performance and ensure silent, durable operation with a long service life.
Mini Pump Series Selection Guide
| Model | Max. unit output | Applicable A/C | Applicable place | discharge head(max.) |
|---|---|---|---|---|
| P20 | 30,000Btu/h | Split unit, Floor mounted unit. | Smaller commercial and domestic units in quite environments. | 10m |
| P38 | 45,000Btu/h | |||
| P18 | 30,000Btu/h | |||
| P36 | 45,000Btu/h | |||
| P16 | 30,000Btu/h | Ducted units; Floor standing & Chassis units; High wall split systems | ||
| P32 | 45,000Btu/h | |||
| P12 | 30,000Btu/h | 7m | ||
| P12C | 30,000Btu/h |

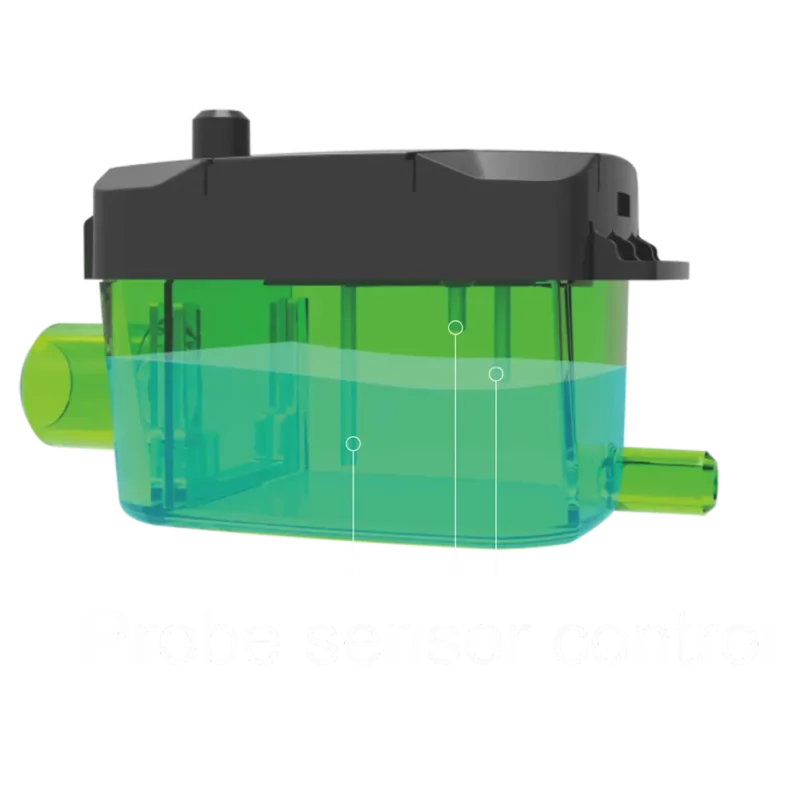

WIPCOOL P32 Mini Split Condensate Pumps
Main Features
Adopting a brush-less motor and built-in safety switch, ensuring that the pump can operate silently for a long time and guarantee the safety drainage.
- Silent Running, Reliable and Durable
- Super quiet design, Unequalled operating sound level
- Built-in safety switch, improve reliability
- Exquisite&compact design, Suitable for different spaces
- Built-in LEDs provide visual operating feedback
Product Description
The P16/32 mini split condensate pump is most popular in WIPCOOL mini pumps. Widely used in ducted air conditioner, suitable for device which cooling capacity under 45,000btu/hr.Adopting a brush-less motor and built-in safety switch, ensuring that the pump can operate silently for a long time and guarantee the safety drainage.
| Model |
P16 |
P32 |
||
| Voltage |
100v-230V~/50-60Hz |
|||
| Suction Lift(Max.) |
2m (6.5ft) |
|||
| Discharge Head(Max.) |
10m[33ft] |
|||
| Flow Rate(Max.) |
16L/h(4.2GPH) |
32L/h(8.5GPH) |
||
| Tank Capacity |
35 ml |
|||
| Mini Splits up to |
30,000btu/hr |
45,000btu/hr |
||
| Sound Level at 1m |
19dB(A) |
21dB(A) |
||
| Ambient Temp. |
0℃-50℃ |
|||
Mini Pump Series
WIPCOOL offers the most complete and high-performance range of mini pumps worldwide. They are widely applied in split, ducted-type, and cassette-type air conditioning units, as well as other appliances that produce small amounts of condensate.
Some items are equipped with a brushless motor, safety switch, and probe sensor, which maintain the pump's high performance and ensure silent, durable operation with a long service life.
Mini Pump Series Selection Guide
| Model | Max. unit output | Applicable A/C | Applicable place | discharge head(max.) |
|---|---|---|---|---|
| P20 | 30,000Btu/h | Split unit, Floor mounted unit. | Smaller commercial and domestic units in quite environments. | 10m |
| P38 | 45,000Btu/h | |||
| P18 | 30,000Btu/h | |||
| P36 | 45,000Btu/h | |||
| P16 | 30,000Btu/h | Ducted units; Floor standing & Chassis units; High wall split systems | ||
| P32 | 45,000Btu/h | |||
| P12 | 30,000Btu/h | 7m | ||
| P12C | 30,000Btu/h |
WIPCOOL P120S Economic Supermarket Condensate Pump
Main Features
- Made of stainless steel case with 3L large reservoir
- Ideal for cold produce display cabinets in supermarkets and convenience stores.
- Low profile (69mm height) for extremely easy to install and maintenance.
- Built of heat resistant material, suitable for handling 70ºC high temperature water.
Product Features
The P120S is specially designed to handle condensate from supermarket refrigerated display cabinets. It is extremely easy to install and maintain.
The compact design of the pump facilitates installation under low-slung display cabinets and removes water during the defrost cycle.
Including an easy-to-clean stainless steel tank that can handle hot water up to 70ºC, a non-return valve, and two optional inlets (top or side). It effectively pumps away defrost water and debris.
| Model | 120S |
| Voltage | 230V~/50-60Hz or 100-120V~/50-60Hz |
| Discharge Head(Max.) | 30m(98ft ) |
| Flow Rate(Max.) | 120L/h (32GPH) |
| Tank Capacity | 3L |
| Sound Level at1m | 40-62dB(A) |
| Water Temp. | Max 75ºC |
| Power | 30W |
Why Choose WIPCOOL Supermarket Condensate Pump
- Easy Maintenance
- Time saving
- High performance
- Industry leading
Supermarket Condensate Pump Selection Guide
Supermarket Condensate Pump
WIPCOOL supermarket condensate pump features a compact design, ideal for cold produce display cabinets in supermarkets and convenience stores. It is especially suitable for handling condensate from supermarket refrigerated display cabinets.
It is extremely easy to install and maintain. The built-in high-level safety switch can either enable the system to be switched off or sound an alarm in the event of pump failure.
| Model | Max. unit output | Applicable | Applicable place | discharge head(max.) |
|---|---|---|---|---|
| P120S | 300,000Bt/h | Single and multiple refrigeration units; Cold store cabinets. | Cold Stores, Super Markets | 30m |
| P360S | 500,000Bt/h | 36m | ||
WIPCOOL P180 General Tank Pump
Main Features
- Floatless structure, free maintenance for long time working.
- Automatic reset thermal protection, prolong service life.
- Forced air cooling motor, ensure stable running.
- Anti-backflow design, improve the safety drainage.
The general tank pump P180 can meet the condensate drainage needs of most air conditioning and refrigeration equipment, covering discharge lifts under 5 to 6 meters. It is suitable for devices with a cooling capacity under 400,000 BTU/hr.
Adopting a dirt-resistant centrifugal high-power water pump with a built-in safety switch and probe level sensor ensures reliable long-term operation.
| Model | P180 |
| Voltage | 230V or 100-120V |
| Discharge Head(Max.) | 5m(17ft)@50Hz 6m(20ft)@60Hz |
| Flow Rate(Max.) | 280L/h (74GPH) 350L/h (93GPH) |
| Tank Capacity | 1.8L |
| Sound Level at 1m | 48dB(A) |
| Ambient Temp. | 0ºC~50ºC |
| Power Consumption | 60W |
Why Choose WIPCOOL Tank Pump?
- Easy Installation
- Durable Running
- High Performance
- Industry Leading
Tank Pump Series
WIPCOOL focuses on innovation and has created a market-leading range of tank pumps, covering 5 lift levels and flow rates: [10m, 40L/h], [3.5m, 110L/h], [4.5m, 180L/h], [6.8m, 380L/h], [12m, 580L/h], designed to suit a diverse array of applications.
Easy to install and maintain, with features including an easy-clean tank, plug-and-play functionality, a twist-and-click non-return valve, and a built-in spirit level. With reliability as the key decision criterion, the tank pumps are designed to perform even under the most challenging applications.
Tank Pump Series Selection Guide
| Model | Max. unit output | Applicable A/C | Applicable place | discharge head(max.) |
|---|---|---|---|---|
| P40 | 45,000Bt/h |
Split unit; Cassette unit; Ducted unit; Floor mounted unit |
Commercial and domestic units in quiet environments | 10m |
| P110 | 150,000Bt/h | 3.5m | ||
| P180 | 400,000Bt/h |
Floor mounted unit; |
Large commercial units |
5m@50Hz 6m@60Hz |
| P380 | 500,000Bt/h | 6.8m | ||
| P580 | 500,000Bt/h | 12m |
WIPCOOL P380 Low profile Tank Pump
Main Features
- Buckle type fixed structure, simple installation.
- 5 inlets for optional (4 top & 1 side), easy to use.
- Low profile design, good fit for those instances where space is at a premium.
The P380 tank pump provides the most economical solution for drainage demands with a lift within 7 meters and a flow rate within 400L/h. It is suitable for devices with a cooling capacity under 500,000 BTU/hr.
Adopting a high-performance water pump with a built-in safety switch and probe level sensor ensures reliable long-term operation. Additionally, this pump is only 119mm in height, making it an excellent fit for instances where space is at a premium
| Model | P380 |
| Voltage | 100V-230V~/50-60Hz |
| Discharge Head(Max.) | 6.8m(22ft) |
| Flow Rate(Max.) |
380L/h (100GPH) |
| Tank Capacity | 1.8L |
| Sound Level at 1m | 28dB(A) |
| Ambient Temp. | 0ºC~50ºC |
| Power Consumption | 20W |
Why Choose WIPCOOL Tank Pump?
- Easy Installation
- Durable Running
- High Performance
- Industry Leading
Tank Pump Series
WIPCOOL focuses on innovation and has created a market-leading range of tank pumps, covering 5 lift levels and flow rates: [10m, 40L/h], [3.5m, 110L/h], [4.5m, 180L/h], [6.8m, 380L/h], [12m, 580L/h], designed to suit a diverse array of applications.
Easy to install and maintain, with features including an easy-clean tank, plug-and-play functionality, a twist-and-click non-return valve, and a built-in spirit level. With reliability as the key decision criterion, the tank pumps are designed to perform even under the most challenging applications.
Tank Pump Series Selection Guide
| Model | Max. unit output | Applicable A/C | Applicable place | discharge head(max.) |
|---|---|---|---|---|
| P40 | 45,000Bt/h |
Split unit; Cassette unit; Ducted unit; Floor mounted unit |
Commercial and domestic units in quiet environments | 10m |
| P110 | 150,000Bt/h | 3.5m | ||
| P180 | 400,000Bt/h |
Floor mounted unit; Dehumidifiers; Ice makers; Air handling units(AHUs) |
Large commercial units |
5m@50Hz 6m@60Hz |
| P380 | 500,000Bt/h | 6.8m | ||
| P580 | 500,000Bt/h | 12m |
WIPCOOL P580 Super Performance Tank Pump
Main Features
- Super performance(12m lift head, 580L/h flow rate)
- Forced air cooling brushless motor, ensure stable running.
- Anti-backflow design, guarantee the safety drainage
- Dual sensor control system, improve durability.
The P580 tank pump provides the most economical solution for extreme drainage conditions, with a lift height of 12 meters and a flow rate of 600L/h. It is suitable for devices with a cooling capacity under 500,000 BTU/hr.
Adopting a brushless motor, dirt-resistant high-power centrifugal water pump, built-in safety switch, and dual control level sensor (probe and float) ensures that the product can operate reliably for a long time and safely discharge condensate.
| Model | P580 |
| Voltage | 230V~/50-60Hz or 100-120V~/50-60Hz |
| Discharge Head(Max.) | 12m(40ft) |
| Flow Rate(Max.) | 580L/h (153GPH) |
| Tank Capacity | 1.8L |
| Sound Level at 1m | 60dB(A) |
| Ambient Temp. | 0ºC~50ºC |
| Power Consumption | 85W |
Why Choose WIPCOOL Tank Pump?
- Easy Installation
- Durable Running
- High Performance
- Industry Leading
Tank Pump Series
WIPCOOL focuses on innovation and has created a market-leading range of tank pumps, covering 5 lift levels and flow rates: [10m, 40L/h], [3.5m, 110L/h], [4.5m, 180L/h], [6.8m, 380L/h], [12m, 580L/h], designed to suit a diverse array of applications.
Easy to install and maintain, with features including an easy-clean tank, plug-and-play functionality, a twist-and-click non-return valve, and a built-in spirit level. With reliability as the key decision criterion, the tank pumps are designed to perform even under the most challenging applications.
Tank Pump Series Selection Guide
| Model | Max. unit output | Applicable A/C | Applicable place | discharge head(max.) |
|---|---|---|---|---|
| P40 | 45,000Bt/h |
Split unit; Cassette unit; Ducted unit; Floor mounted unit |
Commercial and domestic units in quiet environments | 10m |
| P110 | 150,000Bt/h | 3.5m | ||
| P180 | 400,000Bt/h |
Floor mounted unit; Dehumidifiers; Ice makers; Air handling units(AHUs) |
Large commercial units |
5m@50Hz 6m@60Hz |
| P380 | 500,000Bt/h | 6.8m | ||
| P580 | 500,000Bt/h | 12m |
