WIPCOOL VACUUM PUMPS
WIPCOOL 2F10 Industrial 20CFM Vacuum Pump with trolley
WIPCOOL 2F10 sealed rotary vane pumps are renowned for achieving high ultimate vacuum and rapid pumping speeds with quiet operation and the ability to handle vapour. The 2F10 has become the industry standard in a range of HVAC, scientific, laboratory and light industrial applications. The 2F10 is the ideal partner for installation or repair of very large HVAC systems including ammonia systems.
Product Features
Easy to Maintain:Sight glass makes visual inspection of the oil level and conditions simple.
Gas Ballast Valve:
Used when pumping vapour.
Fast Evacuation: 5 way connections with 3 x 3/8" SAE & 2 x 1/4" SAE.
Reliable Performance: Overheating protection is provided via a thermal overload device which is fitted in the motor.
| Model | 2F10 |
| Voltage |
230V |
| Peak Pumping Speed |
50Hz - 20CFM 60Hz - 24CFM |
| Ultimate Pressure w/o Gas Ballast |
4 Microns |
| Ultimate Pressure with Gas Ballast | 8 Microns |
| Motor Power | 1.5HP |
| Rotate Speed(rmp) | 1420@50Hz / 1700@60Hz |
| Operating Ambient temperature | 8 - 40°C |
| Weight | ≈40 Kgs |
| Accessories | Trolley |
WIPCOOL 2F2BRK Cordless Vacuum Pump 5CFM
Recommended Minimum Battery Size is 9.6AH 18 Volts
Dual Power Allows Easy Switch
Want to power your WIPCOOL device directly from a 220V mains outlet?
Use the BC-18P battery connector to run on 220V mains power if your battery is low, or while it is recharging.
WIPCOOL gives you the freedom of both cordless and electrical power.

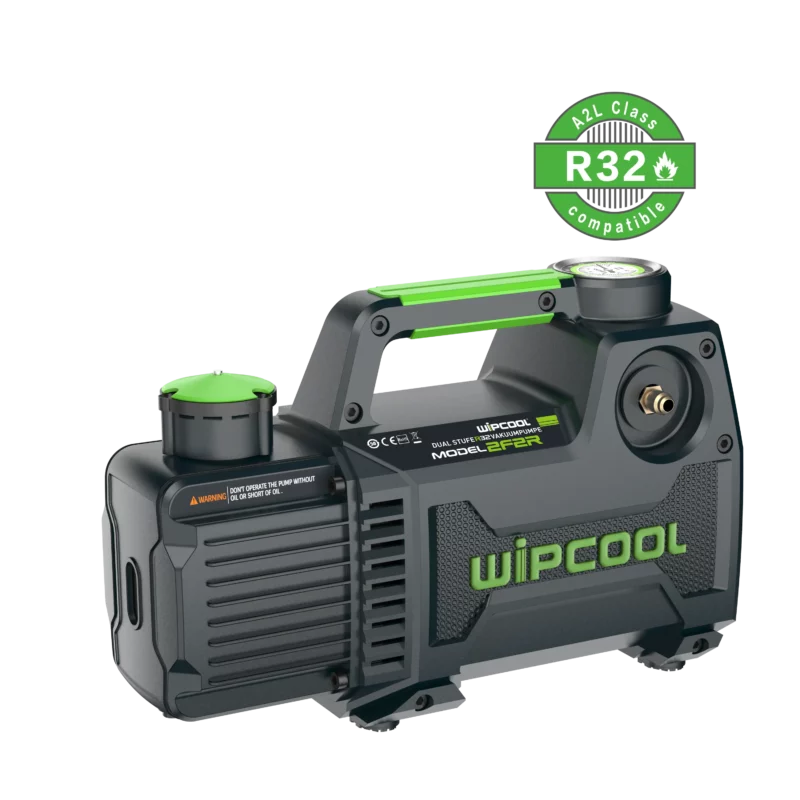

WIPCOOL 2F3R DUAL STAGE VACUUM PUMPS
Main Features of F Series:
- Non-sparking design: suitable for use with A2L refrigerants (R32, R1234YF) and other refrigerants
- (R410A, R22, R134a, etc.)
- Brushless motor technology.
- More than 25% lighter than similar products.
- Built-in solenoid valve to prevent backflow to system.
- Overhead vacuum gauge, compact design and easy to read.
- Integral cylinder structure to guarantee reliability.
Characteristics of Refrigerant 32 (R32) & The Need for Proper HVAC Tools
R-32 is a next generation refrigerant that efficiently carries heat and has lower environmental impact. It can reduce electricity consumption up to approximately 10% compared to that of air conditioners using refrigerant R-22.
Furthermore, compared to the refrigerants widely used today such as R-22 and R-410A, R-32 has a global warming potential (GWP) that is 1/3 lower and is remarkable for its low environmental impact. So all large manufacturers are promoting it as the new refrigerant in the market.
Due to the flammability and high operating pressures of R32, existing equipment (e.g. manifolds, gauges, vacuum pumps, recovery units) must be checked for compatibility. Any potential sources of ignition from electrical equipment must be eliminated.
WIPCOOL F series vacuum pumps are specially designed for this new generation refrigerant R32. The F Series can be used with (A2L or A2) flammable refrigerants and are backward compatible with old refrigerants (such as R12, R22, R134a, R404a, R410a, etc.).
F Series are equipped with built-in solenoid valves and overhead vacuum meters as standard. In addition, the F Series come with reinforced aluminum alloy oil tanks, provide effective heat dissipation and offer better resistance to chemical corrosion.
The oil color and level are easy to see with the oversized sight glass. The powerful and lightweight motor delivers high efficiency with long service life.
Read More About The WIPCOOL F SERIES DUAL STAGE VACUUM PUMPS
Wipcool F series vacuum pump
| Model | 2F2R | 2F3R | 2F4R | 2F5R |
| Voltage | 230V~/50-60Hz or 115V~/60Hz | |||
| Ultimate Vacuum | 15 Microns | |||
| Input Power | 1/2HP | 3/4HP |
1 HP |
1 HP |
| Flow Rate (Max.) | 5CFM, 142L/min | 7CFM, 198 L/min | 9CFM, 255 L/min | 11CFM, 312 L/min |
| Oil Capacity | 450ml | 520ml | 500ml | 480ml |
|
Weight |
6.5kg | 9.8kg | 10kg | 10.2kg |
|
Dimension |
339 x 130 x 225 mm | 410 x 150 x 250 mm | 410 x 150 x 250 mm | 410 x 150 x 250 mm |
|
Inlet Port |
1/4" & 3/8" SAE | 1/4" & 3/8" SAE | 1/4" & 3/8" SAE | 1/4" & 3/8" SAE |
WIPCOOL 2F4R 9CFM DUAL STAGE VACUUM PUMPS
Main Features of F Series:
- Non-sparking design: suitable for use with A2L refrigerants (R32, R1234YF) and other refrigerants
- (R410A, R22, R134a, etc.)
- Brushless motor technology.
- More than 25% lighter than similar products.
- Built-in solenoid valve to prevent backflow to system.
- Overhead vacuum gauge, compact design and easy to read.
- Integral cylinder structure to guarantee reliability.
Characteristics of Refrigerant 32 (R32) & The Need for Proper HVAC Tools
R-32 is a next generation refrigerant that efficiently carries heat and has lower environmental impact. It can reduce electricity consumption up to approximately 10% compared to that of air conditioners using refrigerant R-22.
Furthermore, compared to the refrigerants widely used today such as R-22 and R-410A, R-32 has a global warming potential (GWP) that is 1/3 lower and is remarkable for its low environmental impact. So all large manufacturers are promoting it as the new refrigerant in the market.
Due to the flammability and high operating pressures of R32, existing equipment (e.g. manifolds, gauges, vacuum pumps, recovery units) must be checked for compatibility. Any potential sources of ignition from electrical equipment must be eliminated.
WIPCOOL F series vacuum pumps are specially designed for this new generation refrigerant R32. The F Series can be used with (A2L or A2) flammable refrigerants and are backward compatible with old refrigerants (such as R12, R22, R134a, R404a, R410a, etc.).
F Series are equipped with built-in solenoid valves and overhead vacuum meters as standard. In addition, the F Series come with reinforced aluminum alloy oil tanks, provide effective heat dissipation and offer better resistance to chemical corrosion.
The oil color and level are easy to see with the oversized sight glass. The powerful and lightweight motor delivers high efficiency with long service life.
Read More About The WIPCOOL F SERIES DUAL STAGE VACUUM PUMPS
Wipcool F series vacuum pump
| Model | 2F2R | 2F3R | 2F4R | 2F5R |
| Voltage | 230V~/50-60Hz or 115V~/60Hz | |||
| Ultimate Vacuum | 15 Microns | |||
| Input Power | 1/2HP | 3/4HP |
1 HP |
1 HP |
| Flow Rate (Max.) | 5CFM, 142L/min | 7CFM, 198 L/min | 9CFM, 255 L/min | 11CFM, 312 L/min |
| Oil Capacity | 450ml | 520ml | 500ml | 480ml |
|
Weight |
6.5kg | 9.8kg | 10kg | 10.2kg |
|
Dimension |
339 x 130 x 225 mm | 410 x 150 x 250 mm | 410 x 150 x 250 mm | 410 x 150 x 250 mm |
|
Inlet Port |
1/4" & 3/8" SAE | 1/4" & 3/8" SAE | 1/4" & 3/8" SAE | 1/4" & 3/8" SAE |
WIPCOOL 2F5R 11CFM DUAL STAGE VACUUM PUMPS
Main Features of F Series:
- Non-sparking design: suitable for use with A2L refrigerants (R32, R1234YF) and other refrigerants
- (R410A, R22, R134a, etc.)
- Brushless motor technology.
- More than 25% lighter than similar products.
- Built-in solenoid valve to prevent backflow to system.
- Overhead vacuum gauge, compact design and easy to read.
- Integral cylinder structure to guarantee reliability.
Characteristics of Refrigerant 32 (R32) & The Need for Proper HVAC Tools
R-32 is a next generation refrigerant that efficiently carries heat and has lower environmental impact. It can reduce electricity consumption up to approximately 10% compared to that of air conditioners using refrigerant R-22.
Furthermore, compared to the refrigerants widely used today such as R-22 and R-410A, R-32 has a global warming potential (GWP) that is 1/3 lower and is remarkable for its low environmental impact. So all large manufacturers are promoting it as the new refrigerant in the market.
Due to the flammability and high operating pressures of R32, existing equipment (e.g. manifolds, gauges, vacuum pumps, recovery units) must be checked for compatibility. Any potential sources of ignition from electrical equipment must be eliminated.
WIPCOOL F series vacuum pumps are specially designed for this new generation refrigerant R32. The F Series can be used with (A2L or A2) flammable refrigerants and are backward compatible with old refrigerants (such as R12, R22, R134a, R404a, R410a, etc.).
F Series are equipped with built-in solenoid valves and overhead vacuum meters as standard. In addition, the F Series come with reinforced aluminum alloy oil tanks, provide effective heat dissipation and offer better resistance to chemical corrosion.
The oil color and level are easy to see with the oversized sight glass. The powerful and lightweight motor delivers high efficiency with long service life.
Read More About The WIPCOOL F SERIES DUAL STAGE VACUUM PUMPS
Wipcool F series vacuum pump
| Model | 2F2R | 2F3R | 2F4R | 2F5R |
| Voltage | 230V~/50-60Hz or 115V~/60Hz | |||
| Ultimate Vacuum | 15 Microns | |||
| Input Power | 1/2HP | 3/4HP |
1 HP |
1 HP |
| Flow Rate (Max.) | 5CFM, 142L/min | 7CFM, 198 L/min | 9CFM, 255 L/min | 11CFM, 312 L/min |
| Oil Capacity | 450ml | 520ml | 500ml | 480ml |
|
Weight |
6.5kg | 9.8kg | 10kg | 10.2kg |
|
Dimension |
339 x 130 x 225 mm | 410 x 150 x 250 mm | 410 x 150 x 250 mm | 410 x 150 x 250 mm |
|
Inlet Port |
1/4" & 3/8" SAE | 1/4" & 3/8" SAE | 1/4" & 3/8" SAE | 1/4" & 3/8" SAE |

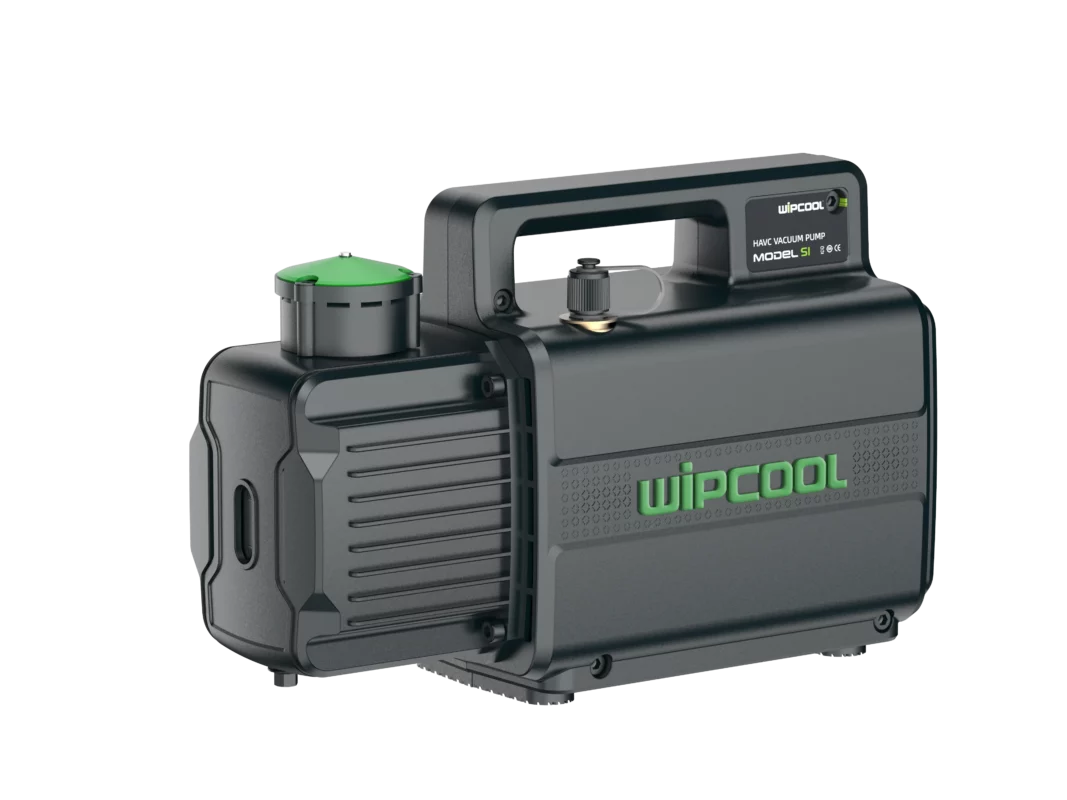

WIPCOOL S1.5 Vacuum Pump S Series 4 CFM
The S Series of single stage vacuum pumps are a great range when price is a major consideration that are available in a wide range of capacities and flow rates..
The S Series of vacuum pumps are available from 2-4 CFM (57-113 LPM). They are ideal for split systems,light duties in automotive and small commercial applications.

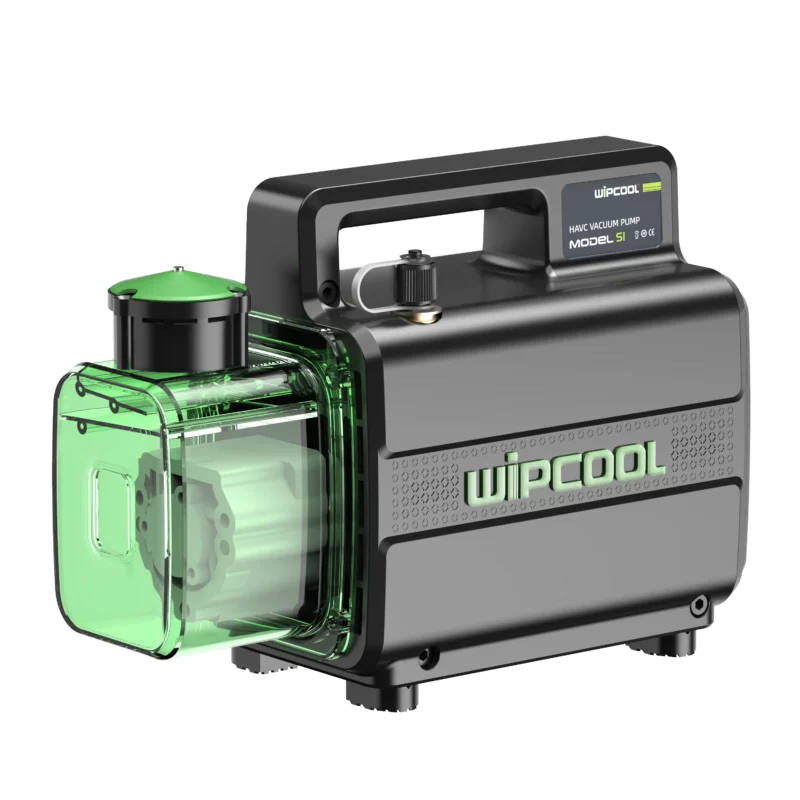

Features a full clear oil reservoir to give you an instant indicator of the condition of your oil and system. Customized specially engineered plastic ABS is used for durable usage, troubleshooting problems quickly and to easily repair or replace the parts.
| Model |
S1 |
S1.5 |
S2 |
|
| Voltage |
230V~/50-60Hz or 100-120V~/50-60Hz |
|||
|
Stages |
1 Stage Vacuum Pumps | |||
| Ultimate Vacuum | 150 microns | |||
| Input Power | 1/4HP | 1/4HP | 1/3HP | |
| Flow Rate (Max.) | 2CFM, 57L/min | 3CFM, 85 L/min | 4CFM, 113 L/min | |
| Oil Capacity | 230ml | 210ml | 200ml | |
|
Weight |
3.3kg | 3.4kg | 3.6kg | |
|
Dimension |
266 x 121 x 194 mm |
|||
|
Inlet Port |
1/4" SAE | |||
Wipcool S series vacuum pump
WIPCOOL S2 Vacuum Pump S Series 6 CFM
The S Series of single stage vacuum pumps are a great range when price is a major consideration that are available in a wide range of capacities and flow rates..
The S Series of vacuum pumps are available from 2-4 CFM (57-113 LPM). They are ideal for split systems,light duties in automotive and small commercial applications.
Features a full clear oil reservoir to give you an instant indicator of the condition of your oil and system. Customized specially engineered plastic ABS is used for durable usage, troubleshooting problems quickly and to easily repair or replace the parts.
| Model |
S1 |
S1.5 |
S2 |
|
| Voltage |
230V~/50-60Hz or 100-120V~/50-60Hz |
|||
|
Stages |
1 Stage Vacuum Pumps | |||
| Ultimate Vacuum | 150 microns | |||
| Input Power | 1/4HP | 1/4HP | 1/3HP | |
| Flow Rate (Max.) | 2CFM, 57L/min | 3CFM, 85 L/min | 4CFM, 113 L/min | |
| Oil Capacity | 230ml | 210ml | 200ml | |
|
Weight |
3.3kg | 3.4kg | 3.6kg | |
|
Dimension |
266 x 121 x 194 mm |
|||
|
Inlet Port |
1/4" SAE | |||
Wipcool S series vacuum pump
