GMC Refrigerazione

GMC Refrigerazione CSR48 Drier Core

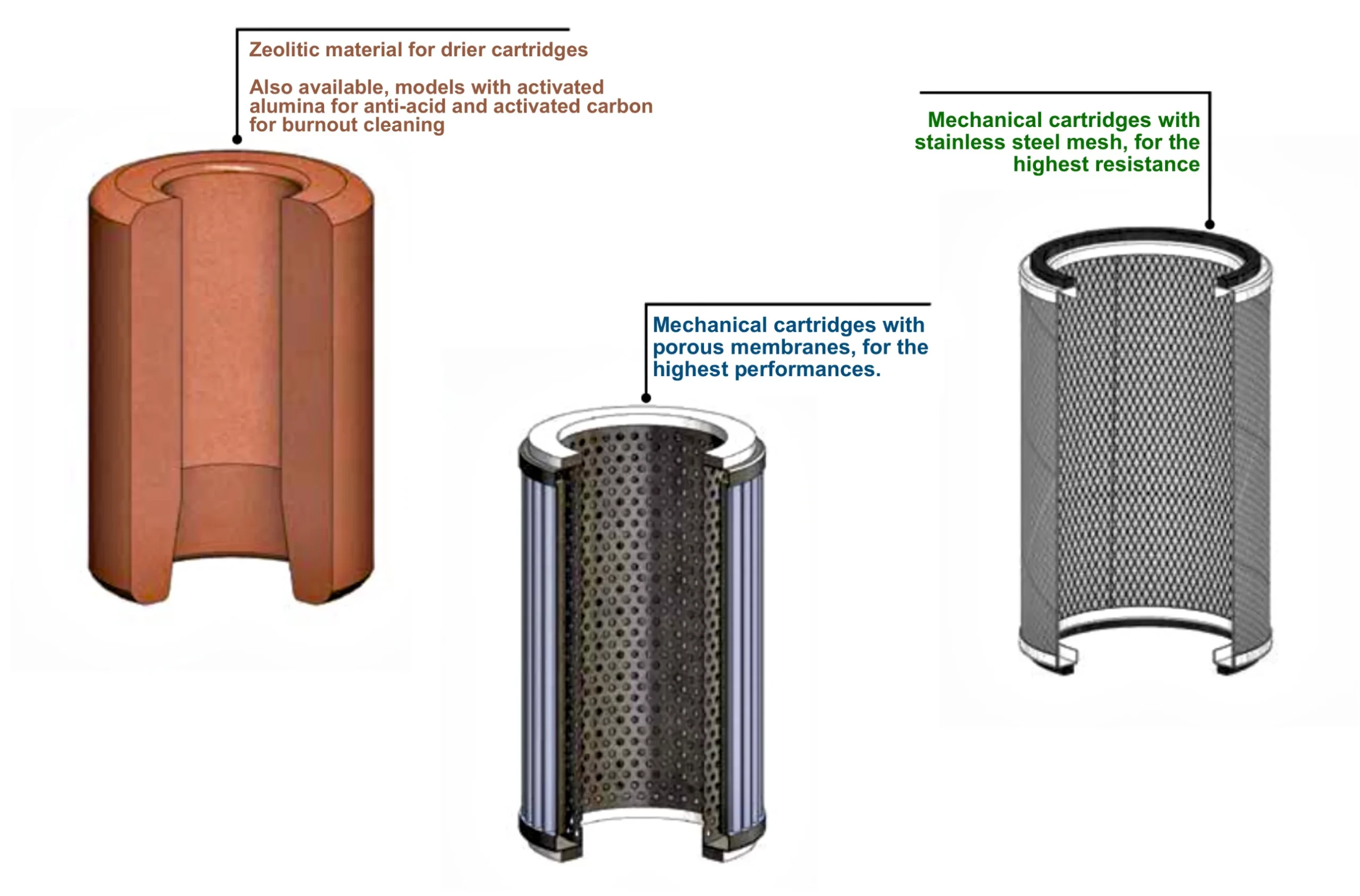

The model CSR48 are compact drier cartridges composed of zeolite material, to obtain a highly selective molecular sieve.

Compatible with Refrigerant Fluids:

  • HCFC: R22
  • HFC: R32, R134a, R404A, R407C, R410A, R507.
  • HFO: R1234yf, R1234ze
  • HFO/HFC blends: R448A, R449A, R450A, R452A, R452B, R445A, R454B, R454C, R513A.
  • HC: R290, R600, R600a, R1270
  • R744
Features
  • 100% Replaceable filter drier solid core
  • Molecular sieves
  • High water adsorption capacity

Other models of molecular sieves or filter cartridges that are available are as follows:

Drier Cartridges:

2nd model available: CSR48A: With the addition of 20% activated alumina, for antacid use.

3rd model available: CSR48AA: With the further addition of 5% activated carbon, for burn-out cleaning.

Mechanical Cartridges:

4th model available: MFC48: Filter cartridges consisting of a metal mesh and a perforated sheet with a filter membrane of porous material interposed, capable of retaining solid particles larger than 20 μm in size.

5th model available: MFC48S: Filter cartridges composed of a mesh in stainless steel joined metal fabric and an expanded metal mesh capable of retaining solid particles larger than 120 μm.
