WIPCOOL PT-25V Vertical Type Condensate Trap
Features
- Light weight design, easy to install
- Water storing design, prevent smelly & insect-resistant
- Built-in gasket seal, ensure no leakage
- Made of PC material, anti-aging & corrosion-resistant
Product description
The WIPCOOL Vertical Type condensate trap is designed to solve the problems of outdoor air reflux, odor, and harmful insect invasion in the condensate discharge pipeline of the air conditioning.
The condensate trap controlled by a sensitive rebound valve, which will open by the gravity of the creating condensate water and close when there is no condensate water created. Adopting a buckle design, it is easy to install, easy to maintain, and provides users with a fresh indoor environment.
| Model | PT-25V |
|---|---|
| Inner diameter | Ø25 |
| Outer diameter | Ø32 |
| Negative Pressure | 1200Pa |
| Gross weight | 60g |
Electrical Isolator 63 Amps, 3 Poles, 440V, 50Hz, IP65 with Silver Cadmium Oxide contacts
Suitable for air conditioners, cold storage and all other electrical devices.
Silver Cadmium Oxide is a blend of silver and cadmium oxide used as an electrical contact material due to its low arc erosion and excellent arc extinguishing properties.
Erosion under the action of the arc is one of the determining factors in the operating life of electrical contacts which are required to interrupt currents of the order of several amperes.
INFICON D-TEK Stratus Refrigerant Leak Detector with Parts Per Million (PPM) Display
INFICON D-TEK STRATUS® REFRIGERANT LEAK DETECTOR AND PORTABLE MONITOR
Find Profit-Crushing Leaks in No Time
D-TEK Stratus combines the superior leak detection of INFICON D-TEK leak detectors with the cloud hunting capability of a portable monitor all in one hand-held unit.
Quickly locate the area containing the leak using the large, easy-to-read LCD display, and then pinpoint the leak all with one instrument! D-TEK Stratus is the next big thing in refrigerant leak detection.
FEATURES
- Automatic and manual zero modes
- Rugged carrying case included
- Detects all CFCs, HCFCs, HFCs, and HFOs
- Industrial AC & Refrigeration
PETROSS Manifold Set
HVAC Manifold Gauge Set
- With 2 Valves - for R410A, R22, R404A - Body is made out of Brass. Turning Knobs are made out of Aluminium - PSI, °C - 36 inches (90cm) High Pressure Hose Set. Colour coded hoses come with slip-resistant sealing gaskets. - Protective Gauge Boots or Coverings - Sight Glass Built-in
Best Selling Categories
(Swipe Menu To See More)
(Swipe Menu To See More)
Customer Favorites

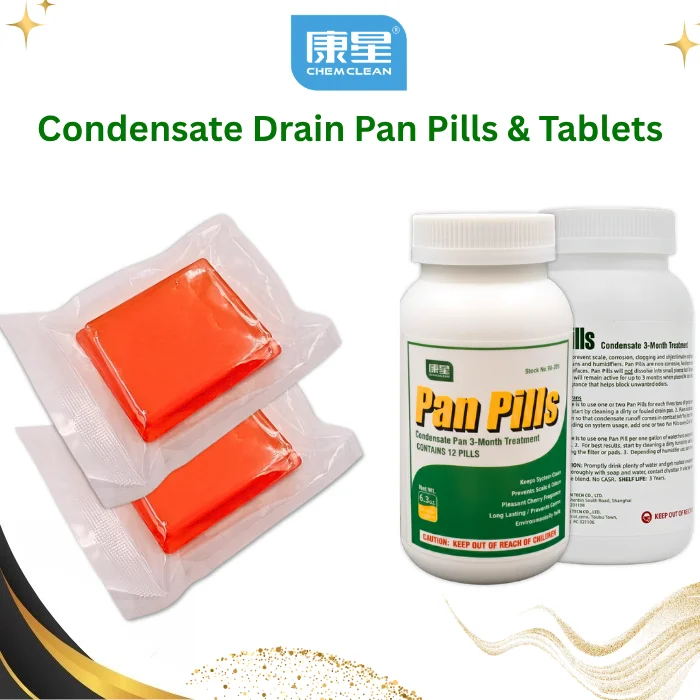

Chem clean Clog Preventor
Clog Preventor Tablet
Germicide and Decontaminant for Drain Pans
Clog Preventor is very cost effective and easy to use. Used regularly, Clog Preventor is the ideal antidote for unwanted slime and bacteria growth.- Safe, self-contained, tamper-proof packaging
- Mix and match units fit any size equipment
- Each unit stays effective for a full three months at least
- Unique design will not clog drain pan
Kriwan 22A634 INT69 Y Diagnose
Brief Introduction of This Model
1) Perfect for screw and scroll compressors. This motor protector is mainly employed on compressors of which the motor's direction of rotation is essential for the function.
2) Protects from high temperature and phase issues (inversion, asymmetry, missing, etc.).
3) Diagnose datalog function
4) UL approved model
Used in high volume by Danfoss, Trane, Hanbell and many Chinese OEMs.
Application
The compressor protection Kriwan 22A634 INT69 Y Diagnose is a further development of the reliable KRIWAN motor protectors. Additional inputs for the phase monitoring as well as supplementary flexible-response protective functions help to improve the availability and extend the service life of a refrigeration system.
The Kriwan 22A634 INT69 Y Diagnose automatically saves operational and error data in a non-volatile memory. This data can be retrieved and analysed for
diagnosis. The full scope of the diagnosis is achieved by using a KRIWAN-specific AMS sensor.
This motor protector is mainly employed on compressors of which the motor's direction of rotation is essential for the function.
kriwan 22A634
Functional Description
The temperature monitoring in the motor winding is done according to the static evaluation process; the motor is switched off immediately if the nominal response temperature of the built-in AMS or PTC sensors is reached.
A short circuit at an AMS or PTC input also leads to a switch-off. A short cycling leads to a reset delay.
Following cooling off and/or error rectification and subsequent restart delay, the compressor may be restarted. Restart after a lock-out is only possible after a reset.
The phase monitoring of the motor voltage is active 1s after the start of the motor. The correct phase sequence is monitored for 5s, the phase failure is monitored for the total motor running time. If a wrong phase sequence is detected, the motor protector will lock switch off, if there is a phase failure then a switch-off takes place.
After motor stop, the phase monitoring is deactivated for approximately 15s to prevent unintended locking due to brief reverse running of the compressor.
For operation in the specified manner, the supply voltage has to be on permanently on the Kriwan 22A634 INT69 Y Diagnose.
The built-in LED signals the current status of the motor protector (see flash code).
Replaces Goldair 22A282 OUT69 Y Motor Protector

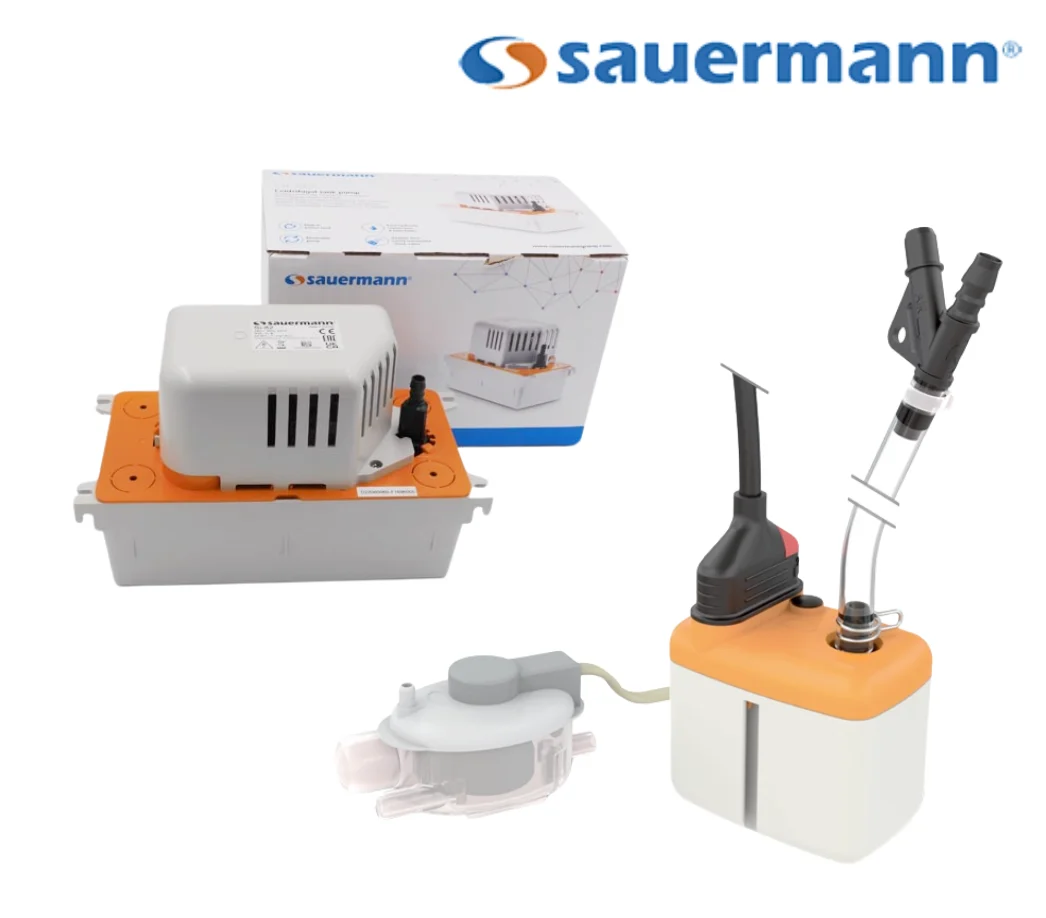

Sauermann Si-82 Centrifugal Pumps
Made in France
Features
- The Si-82 pump is designed to be easily installed whatever the layout of the premises.
- Strong, the Si-82 tolerates charged, high temperature and acidic condensates (pH>2.5) produced by gas condensing boilers.
- Capable of evacuating up to 500 l/h, the Si-82 pump is suitable for air conditioning units and industrial refrigeration displays.
Technical Specification
| Max. flow rate | 500 l/h |
| Max. discharge head | 5m |
| Max pressure | 5.4 m - flow rate = 0 l/h |
| Sound level in application at 1 m (3.3 ft) (Measured in Sauermann acoustic lab, pump operating with water) | ≤ 45 dBA |
| Mains supply | 230 V~ 50 Hz – 70 W – 0.75 A |
| Detection levels | On: 53 mm, Off: 42 mm, Safety: 64 mm |
| Safety switch | NC 4 A resistive – 250 V |
| Max. condensate temperature | 65 °C, 80 °C in short peak |
| Max. condensate acidity | pH > 2.5 (Gas condensing boilers) |
| Thermal protection (overheating) | 105 °C (auto-reset) |
| Operating conditions | 30%: 3s ON – 7s OFF |
| Protection | IP20 |
| Safety standards | CE and EAC |
| RoHS directive | Compliant |
| WEEE directive | Compliant |
| Weight (including box) | 2.5kg |
| Packaging | 4 pcs: L 400 x W 300 x H 200 mm |
| Pallet quantity | 64 pieces |
High Performance
- Can discharge condensates up to 5 m
- Up to 500 l/h, for shorter running time
- Low sound level – quiet operation
Easy hydraulic connection
- Quarter turn easily removable check valve, designed to facilitate Ø int. 10 mm (3/8”) hose plug in.
- 4 inlet holes Ø 30 mm (1” 3/16)
Easy electrical connection
- Plug-in power cord to facilitate installation and maintenance.
Applications
- Column air conditioning units
- Multi cassettes
- Ducted units
- Gas condensing boilers
- High efficiency gas furnace
- Refrigerating display cabinets
- Evaporators
Versatile
- Easily removable tank and reversible pump, to allow mounting rather on the left or on the right of the application and choosing the side of the water exit.
Installation in any place
- Pump can be floor mounted, attached on a wall or hanging from a ceiling.
High resistance
- Oil and acid resistant float
- Mechanical structure resistant to shocks
Copper Strainer
| 1 | Copper Strainer 3/8" x 3/8" without silica |
|---|---|
| 2 | Copper Strainer 3/8" x 1way |
| 3 | Copper Strainer 3/8" x 2way |
| 4 | Copper Strainer 3/8" x 3way |
| 5 | Copper Strainer 3/8" x 4way |
| 6 | Copper Strainer 3/8" x 5way |
| 7 | Copper Strainer 3/8" x 3/8" - 25g With Silica |
| 8 | Copper Strainer 1/4" x 1/8" - 15g With Silica |
| 9 | Copper Strainer 1/4" x 1/4" - 25g With Silica |
Premium HVAC/R Products
INFICON D-TEK 3 Refrigerant Leak Detector
Stop Leaking Profits
D-TEK 3 builds on the proven performance of D-TEK leak detectors with added features to help you get your job done faster. An easy-to-change sensor, quick charge lithium ion battery, and a new ergonomic design make D-TEK 3 a versatile tool for everyday HVAC maintenance and repair. Plus, a new optional CO2 sensor gives you two instruments in one. Upgrade your toolbox with this accurate and reliable leak detector.
FEATURES
- Low, Medium, High, and Super sensitivity settings
- Automatic and manual zero modes
- Rugged carrying case included
- Detects all CFCs, HCFCs, HFCs, HFOs, and blends (including A2Ls)
- Detects CO2 with optional CO2 sensor
- Optional extra-long probe for hard-to-reach areas
- Industrial Air Conditioning and Refrigeration
- Residential Air Conditioning and Refrigeration
INFICON D-TEK Stratus Refrigerant Leak Detector with Parts Per Million (PPM) Display
INFICON D-TEK STRATUS® REFRIGERANT LEAK DETECTOR AND PORTABLE MONITOR
Find Profit-Crushing Leaks in No Time
D-TEK Stratus combines the superior leak detection of INFICON D-TEK leak detectors with the cloud hunting capability of a portable monitor all in one hand-held unit.
Quickly locate the area containing the leak using the large, easy-to-read LCD display, and then pinpoint the leak all with one instrument! D-TEK Stratus is the next big thing in refrigerant leak detection.
FEATURES
- Automatic and manual zero modes
- Rugged carrying case included
- Detects all CFCs, HCFCs, HFCs, and HFOs
- Industrial AC & Refrigeration
Sauermann Si-30 Piston Pump
Features of Si-30 Condensate Pump
- The high performance Si-30 is suitable for air-conditioning units up to 20 kW.
- The piston technology is specifically designed for removing condensates from air conditioning systems.
- The Si-30 is fully reliable, in any kind of environment.
- Its operating sound level will remain silent whatever the volume of condensates
Technical Specification
| Max. flow rate | 20 l/h |
| Max. suction head | 3m |
| Max discharge head | 10m (flow rate= 4l/h) |
| Max. pressure | 14 m (flow rate = 0 l/h) |
|
Sound level at 1m According to EN ISO 3744(Measured at LNE lab, pump operating with water, out of application) |
20 dBa |
| Mains supply | 230 V~ 50 Hz – 14 W |
| Insulation class | Double insulation |
| Detection levels | ON: 16 mm; OFF: 11 mm; Safety: 19 mm |
| Safety switch | NC 8 A resistive – 250 V |
| Thermal protection (overheating) | 115 °C (auto-reset) |
| Max. condensate temperature | 35 °C |
| Operating conditions | 100% - Continuous duty |
| Protection | IP20 |
| Safety standards | CE & EAC |
| RoHS directive | Compliant |
| WEEE directive | Compliant |
Patented technology
- Increased performance: Only one pump, for air conditioning unit up to 20 kW.
- High resistance to pollution created by general environment. Capable of discharging small particles.
- Proven Reliability.
- The Drain Safe Device retains prime and prolongs the pump life.
Energy saving
- Improved performance and high flow rate reduce operation time and energy consumption.
Silent
- Quiet in operation: 20 dBA independently tested.
- The size of the air-conditioning unit and volume of condensates to be removed does not affect the operational sound level of the pump.
- Mounting bracket specifically designed to reduce vibration transmission to the wall / panel or pipework.
Easy to install
- Compact design
- Mounting bracket: allows the pump to be wall mounted or hung from ceilings and pipework.
- Lockable plug-in power cord to avoid unintended disconnection.
Applications
For use with any air-conditioning units,
up to 20 kW:
- Wall mounted
- Ceiling suspended
- Ducted
- Fan-coils
Wipcool PCW-4W Pressure Washers
Portable Coil Cleaning Machine With Water Tank
- Integrated Design with nozzle, hose and accessories
- Allows the HVAC technician to be mobile
- Allows cleaning in areas where water is not easily available like deserts or rooftops.
- 16L clean water tank allows the HVAC technician to be free from water mains
- Includes adjustable shoulder strap for easy mobility
- Specialized and balanced pressure (5bar / 10 bar) that’s safe on the air conditioner’s coils Voltage – 230V 50Hz Flow Rate – 4L / min Water Tank – 16L
