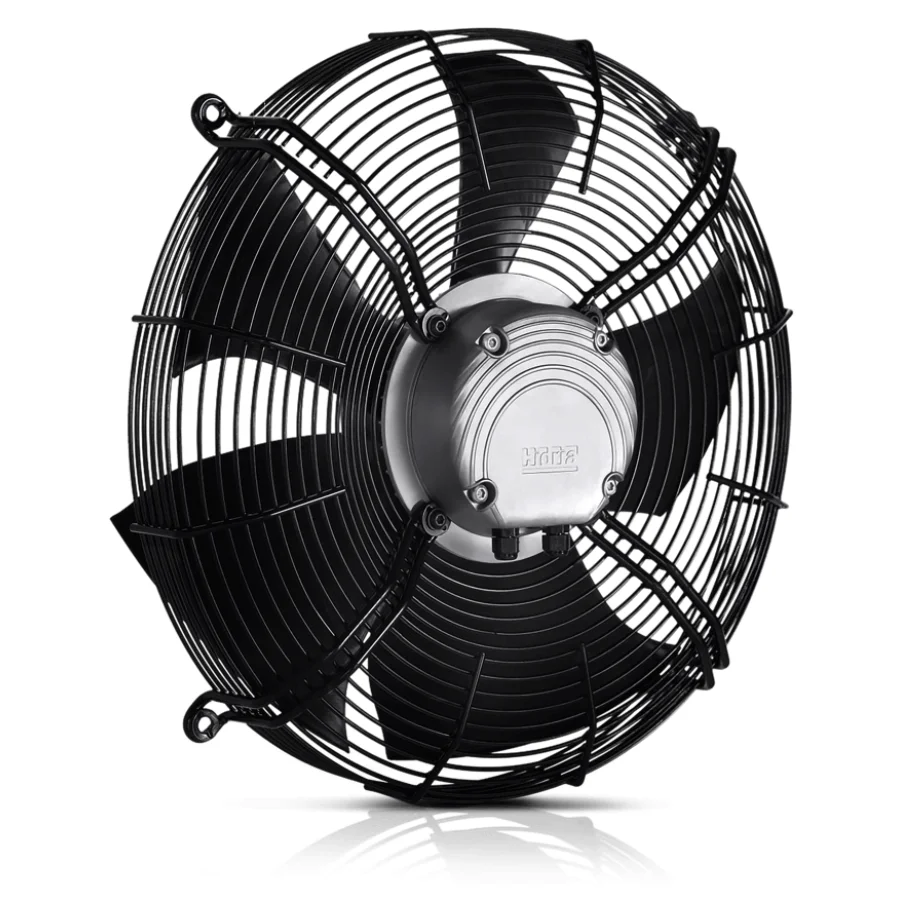

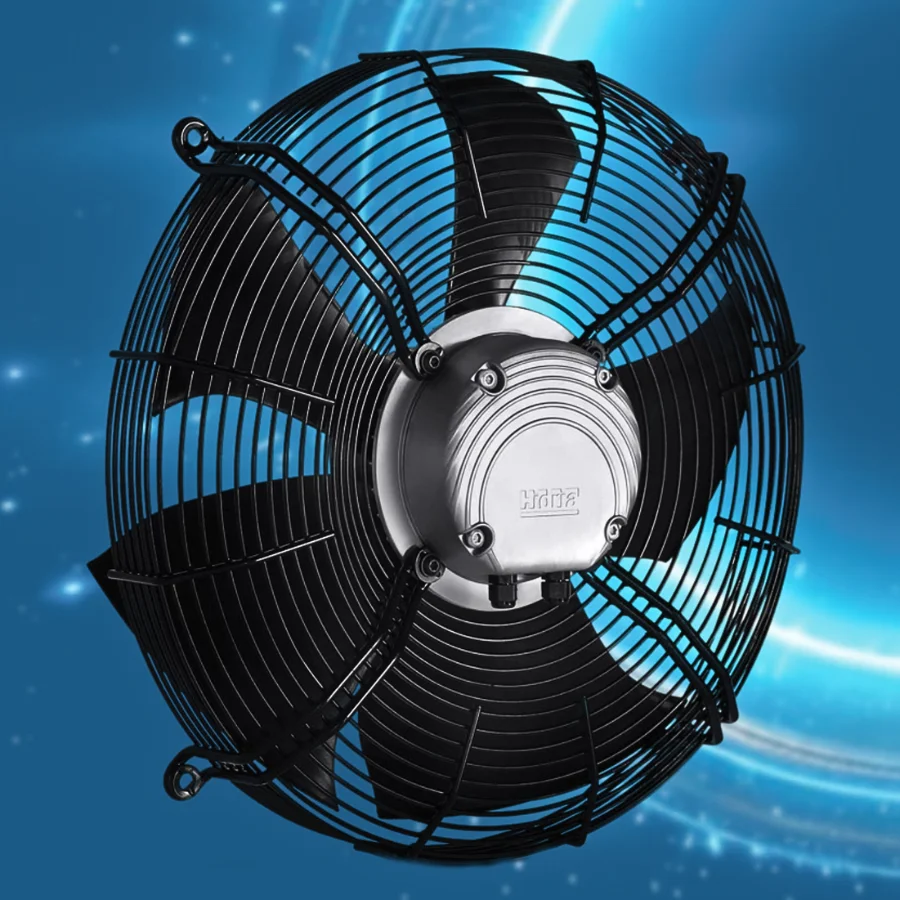

Hidria 300mm, 230V 1Ph Axial Fan
Made in Slovenia, Europe
The Hidria 0309-4-1207 / R09R-3030HA-4M-3509 is a high-efficiency AC axial fan engineered primarily for refrigeration, air conditioning, and industrial ventilation systems.
- Fan Diameter: 300 mm
- Model Number : 0309-4-1207 / R09R-3030HA-4M-3509
- Airflow Direction: Sucking (Air drawn over the motor and expelled through the guard grill)
- Supply Voltage: Single-Phase 230 V AC
- Frequency: 50 / 60 Hz
RPM : 1540 at 60Hz, 1360 at 50Hz - Direction of Propeller Rotation : Clockwise when viewed from top of grill
- Design Setup: Equipped with an integrated guard grill mounted over a short inlet basket (R09R prefix classification).
- Insulation Class: Class 155 (F) (Ensuring strong thermal durability against winding heat)
- Protection Rating: IP54 (Dust protected and resistant to water splashes, ideal for HVAC environments).
