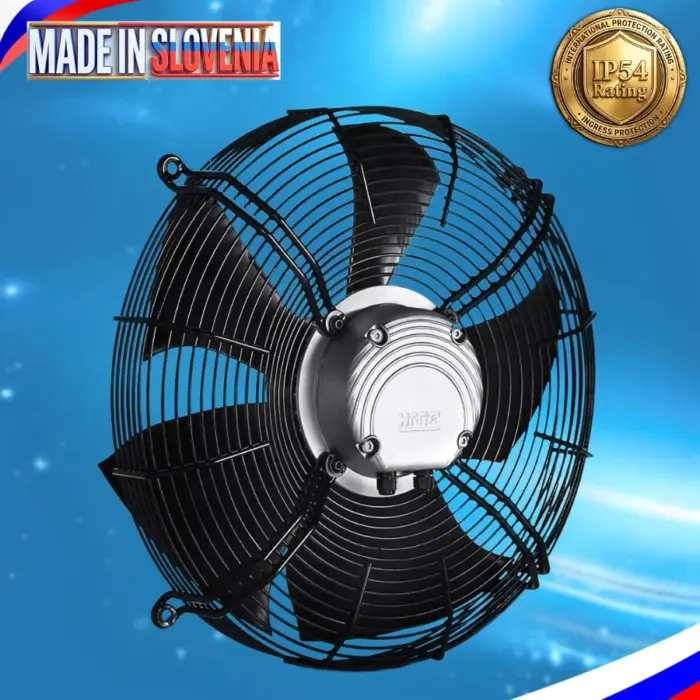

Hidria 330mm, 230V 1Ph Axial Fan
Made in Slovenia, Europe
The Hidria 0309-4-1127 / R09R-3330HA-4M-4259 is a high-performance single-phase AC external rotor axial fan primarily used in refrigeration, air conditioning, and ventilation systems. It belongs to Hidria’s 330 mm size category.
- Fan Diameter: 330 mm
- Model Number :0309-4-1127 / R09R-3330HA-4M-4259
- Nominal Design Size: 330 mm diameter series.
- Mechanical Setup (R09R): Vormontiert assembly featuring an integrated external wire basket safety guard grill and a motor-mounted terminal box.
- Airflow Orientation (HA): Sucking / Suction — Draws air smoothly across the external rotor motor core and discharges it out past the guard grill.
- Frequency: 50 / 60 Hz
- RPM : 1510 at 60Hz, 1350 at 50Hz
- Direction of Propeller Rotation : Clockwise when viewed from top of grill
- Blade Construction: 5-blade configuration manufactured out of high-durability black-coated sheet steel.
- Thermal Protection & Insulation: Class 155 (F) standard rating.
- Environmental Protection Rating: IP54 classification (dust-protected and resilient against splashing water, safe for outdoor setups).
- Ambient Temperature Envelope: -30 °C up to +70 °C.
