Replaces KP-1 Manual

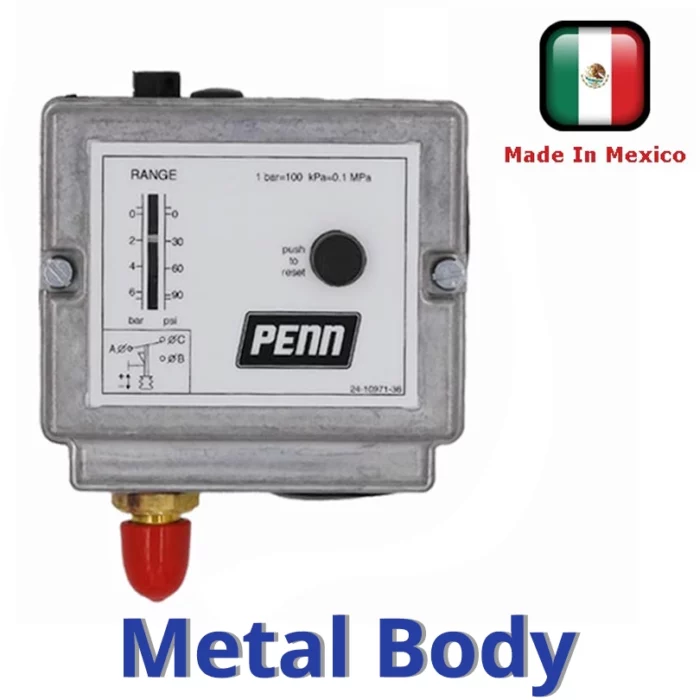

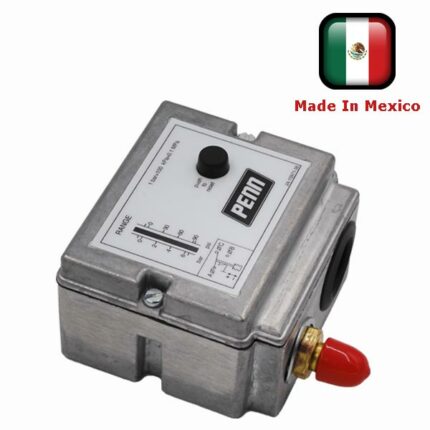

PENN P77BCA-13000C Pressure Control
Control What Matters with PENN®
For nearly 100 years, PENN has helped customers control temperature, pressure and air flow in vital equipment across industries and applications. PENN is a member of Johnson Controls.
The PENN P77 Series Pressure Controls for high pressure applications are designed primarily for high pressure cut-out control, pump-down control, condenser fan cycling, and capacity control on commercial refrigeration and air-conditioning applications.
The PENN P77 Series Pressure Controls for high or low pressure applications are designed for single pressure control of commercial refrigeration and air-conditioning applications.
Features and benefits of PENN P77 series
1) Splash-proof enclosure
Built to provide long lasting, rugged protection for internal components.
2) Sight-set calibrated pressure adjustment
Displays a visible pressure scale, fully adjustable through the range without removing the cover.
3) Manual reset lockout option
Provides trip-free lockout that cannot be overridden or reset until pressure returns to a specified level.
4) Generous wiring space
Provides ample space for easy wiring and maintenance.
A more detailed comparison of the main features of P77BCA-13000C are listed below: (Swipe the Green Table to Read More)
|Brand||Model No:||Description||Voltage||Range bar||Differential Range bar||High Range bar||Differential bar||Switch Action||Connection|
|PENN by Johnson Controls||P77BCA-13000C||PRESSURE CONTROL for Refrigerant Gas||120/240V||-0.5-7||Manual||N/A||N/A||SPDT||7/16-20 UNF for 6mm (1/4 in.) flare fitting|
|Danfoss||KP1-Manual||PRESSURE CONTROL for Refrigerant Gas||120/240V||-0.9-7||Manual||N/A||N/A||SPDT||7/16-20 UNF|
|Emerson||PS1-R3A||PRESSURE CONTROL for Refrigerant Gas||120/240V||-0.5-7||Manual||N/A||N/A||SPDT||7/16-20 UNF|
The following table provides a quick and easy comparison of all available PENN Controls models:
|S.#||PENN Pressure Controls Model Numbers||Substitute the Following Model|
|FOR REFRIGERANT GAS|
|1||PENN P77AAA-13000C||KP-1 AUTO|
|2||PENN P77BCA-13000C||KP-1 MANUAL|
|3||PENN P77AAA-13500C||KP-5 AUTO|
|4||PENN P77BEA-13500C||KP-5 MANUAL|
|5||PENN P78LCA-13000C||KP-15 DUAL AUTO|
|6||PENN P78MCA-13000C||KP-15 DUAL MANUAL|
|FOR COMPRESSOR OIL|
|7||PENN 128AA-17C (120 Sec)||MP55|
Read More About The PENN P77 Series Pressure Controls
