Replaces KP-15 Dual Auto

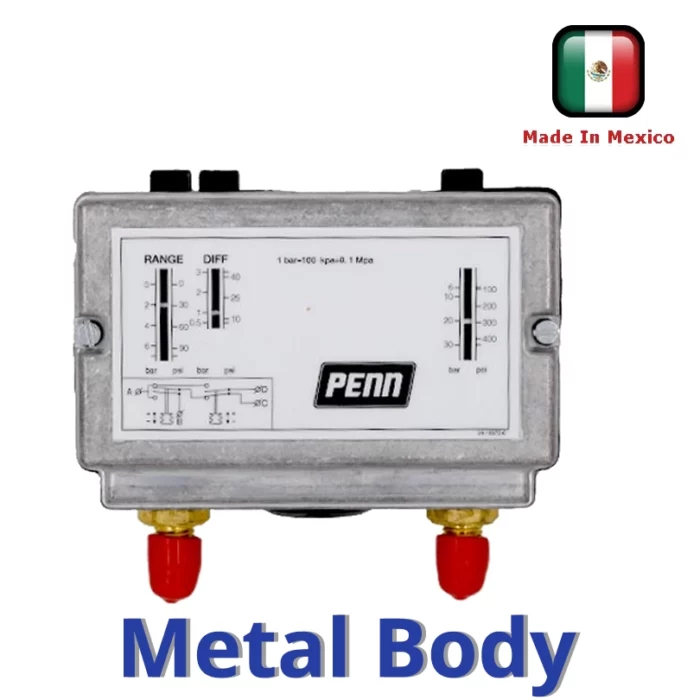

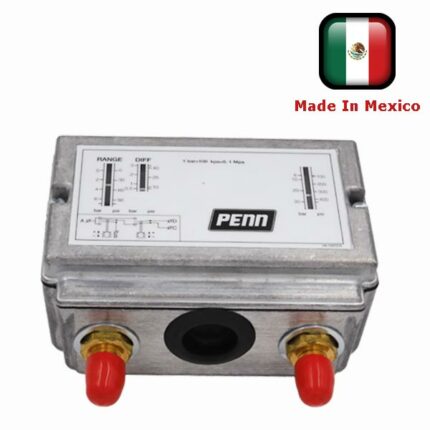

PENN P78LCA-13000C Pressure Control
Control What Matters with PENN®
For nearly 100 years, PENN has helped customers control temperature, pressure and air flow in vital equipment across industries and applications. PENN is a member of Johnson Controls.
The PENN P78 Series Pressure Controls for high pressure applications are designed primarily for high pressure cut-out control, pump-down control, condenser fan cycling, and capacity control on commercial refrigeration and air-conditioning applications.
The PENN P78 Series Pressure Controls for dual pressure applications are designed primarily for use as combination high and low pressure controls on commercial refrigeration and air-conditioning applications.
Features and benefits of PENN P78 Series
1) Splash-proof enclosure
Built to provide long lasting, rugged protection for internal components.
2) Sight-set calibrated pressure adjustment
Displays a visible pressure scale, fully adjustable through the range without removing the cover.
3) Manual reset lockout option
Provides trip-free lockout that cannot be overridden or reset until pressure returns to a specified level.
4) Generous wiring space
Provides ample space for easy wiring and maintenance.
A more detailed comparison of the main specifications of P78LCA-13000C are listed below (Swipe the Green Table to Read More)
|Brand||Model Number||Description||Voltage||Range Bar||Differential Range bar||High Range Bar||Differential bar||Switch Action||Connection|
|Penn by Johnson Controls||P78LCA-13000C||PRESSURE CONTROL for Refrigerant Gas||120/240V||-0.5 to 7||0.6 to 3||3 to 30||3 bar (Fixed)||SPDT||7/16-20 UNF for 6mm (1/4 in.) flare fitting|
|Danfoss||KP-15 Auto||PRESSURE CONTROL for Refrigerant Gas||120/240V||-0.20 - 7.5||0.7 to 4||8 – 32||4 bar (Fixed)||SPDT||7/16-20 UNF|
|Emerson||PS2 - Y7A||PRESSURE CONTROL for Refrigerant Gas||120/240V||0.3 to 7||1 to 5||6 – 32||Fixed||SPDT||7/16-20 UNF|
The following table provides a quick and easy comparison of all available PENN Controls models:
|S.#||PENN Pressure Controls Model Numbers||Substitute the Following Model|
|FOR REFRIGERANT GAS|
|1||PENN P77AAA-13000C||KP-1 AUTO|
|2||PENN P77BCA-13000C||KP-1 MANUAL|
|3||PENN P77AAA-13500C||KP-5 AUTO|
|4||PENN P77BEA-13500C||KP-5 MANUAL|
|5||PENN P78LCA-13000C||KP-15 DUAL AUTO|
|6||PENN P78MCA-13000C||KP-15 DUAL MANUAL|
|FOR COMPRESSOR OIL|
|7||PENN 128AA-17C (120 Sec)||MP55|
Read More About The PENN P78 Series Pressure Controls
Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.
Please be assured our prices are truly competitive. Our goal is to help you save money and time. Contact us or visit our showrooms to learn more about PENN Controls.
