WIPCOOL HD-2 Tube Deburrer
Features

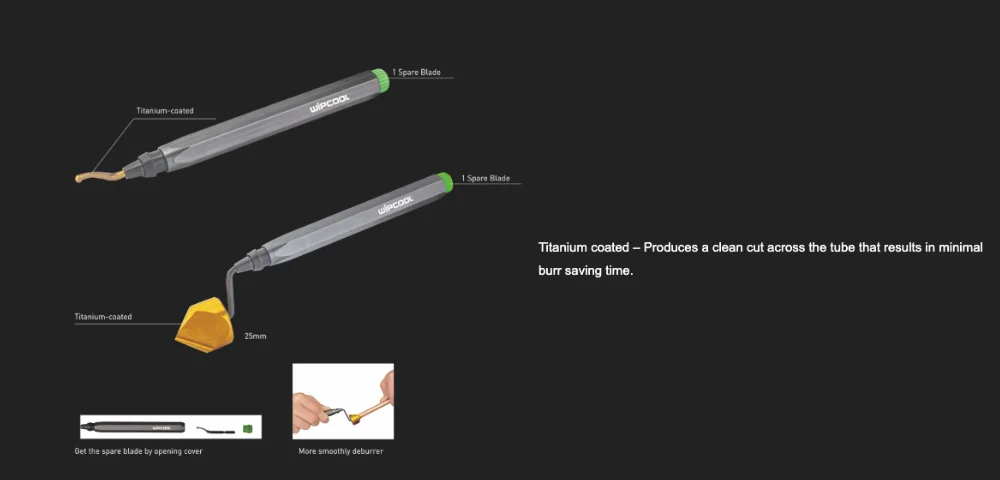

- Titanium-coated, Sharp & Durable
- Premium anodizing painted aluminum alloy handle, comfortable to grip
- Quality tempered high speed steel blades
- Titanium-coated surface, wear-resistant, long service life
What is a Countersink?
A countersink is a specialized tool or blade used to cut a cone-shaped recess into the edge of a hole or tube.
When used with copper or steel tubing, a countersink blade (like the one featured on the WIPCOOL HD-2 debarring tool) acts as a heavy-duty reamer.
- Shaves Inner Lips: It cleanly cuts away rough inner edges left by standard tube cutters.
- Creates a Chamfer (see below for explanation): It creates a precise, angled slope (chamfer) along the inner lip. This smooth transition promotes smooth refrigerant flow and makes it easier to fit pipes together for welding or swaging.
What is a Chamfer?
Chamfering is the process of cutting away a sharp edge or corner to create a flat, angled slope (typically 45 degrees) between two surfaces.
Instead of leaving a sharp 90-degree corner, chamfering creates a neat, transitional bevel.
Why Chamfering is Used on Metal Pipes
- Removes Sharp Burrs: In piping and machining, it shaves off the hazardous, razor-sharp edges left behind after cutting metal or plastic.
- Allows Easier Assembly: It acts like a guide ramp. An outer chamfer on a tube allows it to slide effortlessly into a fitting, coupling, or expander block without catching.
- Protects Hands and Parts: It smooths down sharp external edges, preventing installers from cutting their hands and stopping metal parts from scratching each other.
- Prevents Stress Cracks: Removing sharp corners distributes mechanical stress more evenly, making materials less likely to crack or chip under pressure.

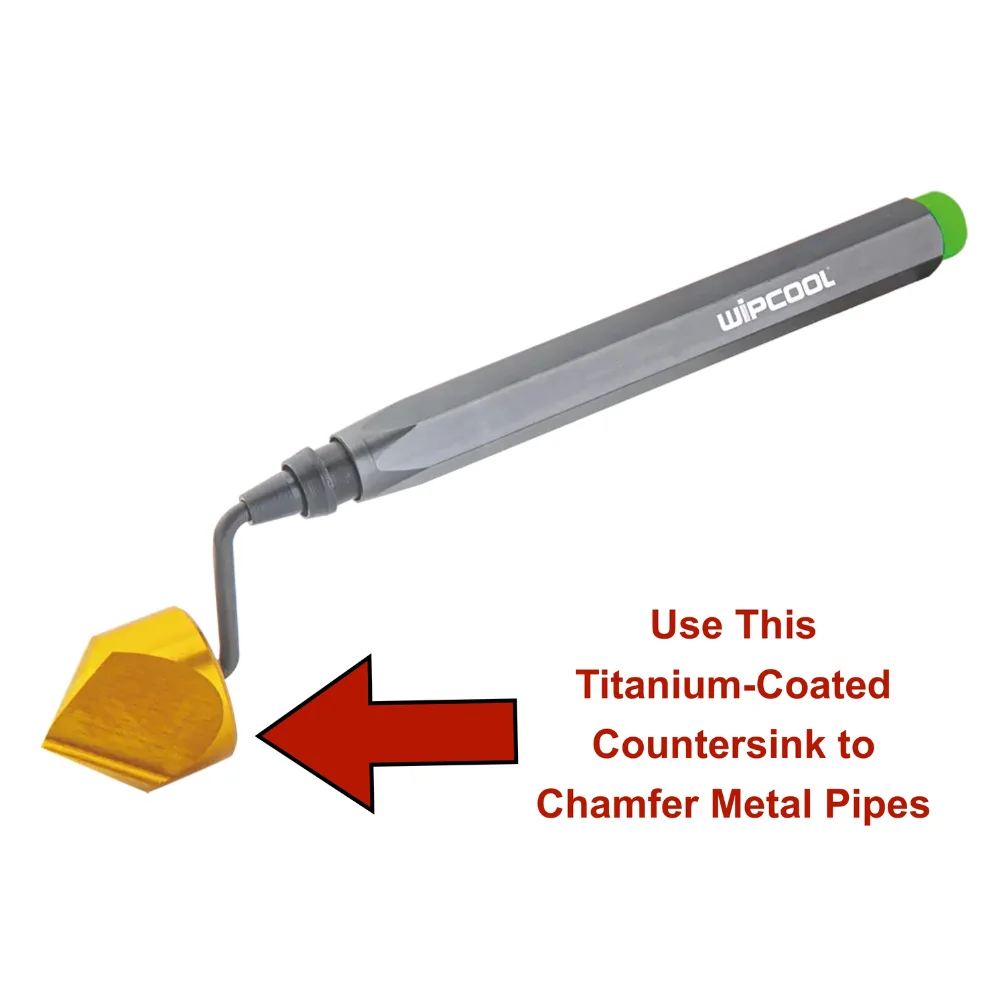

Can the WIPCOOL HD-2 Countersink be used for making a chamfer on metal pipes?
Yes, the WIPCOOL countersink blade can absolutely be used to make a chamfer. In fact, that is exactly what it is designed to do when working with copper tubing.
Why is Copper Tube Deburring Needed When Installing an Air Conditioner
Copper tube deburring (burring) is necessary because cutting a pipe with a wheel tube cutter leaves a sharp metal lip that shrinks the inner diameter, disrupts refrigerant and oil flow, creates destructive turbulence, risks tearing flare connections and leaves loose metal shavings that can ruin the compressor.
Why Deburring is Essential on Copper Pipes
- Prevents System Blockages & Damage: Shavings or sharp metal flakes left inside the tube can circulate with the refrigerant and wreck the air conditioner's compressor.
- Stops Refrigerant Turbulence: A jagged internal edge acts like a speed bump, creating turbulent flow that causes noise, drops system efficiency, and disrupts proper compressor oil return.Â
- Ensures Leak-Free Flares: If you are flaring the tube to connect it to service valves, a rough edge can scratch or split the flare face, causing costly refrigerant leaks.
- Improves Welds (Brazing): Removing outside and inside burrs allows pipes to slide together smoothly for a tight, uniform fit before applying silver solder or brazing alloy.Â
|
Model |
HD-2 |
|---|---|
| Configuration | 1Countersink Blade +1 Normal Blade |
