RTM HT-1S Hand Torch
- HVAC / Plumbing
- Automotive
- Disassemble Bolt
- DIY
- Auto Ignition Torch
- Super Turbo Flame

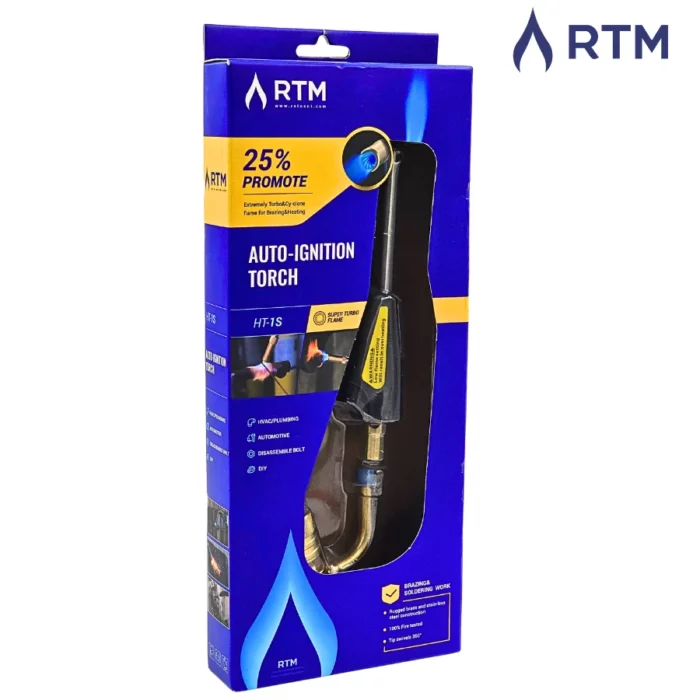

The RTM-HT-1S Hand Torch is a self-igniting, brass-constructed welding and brazing nozzle designed for HVAC/R and plumbing.
It features a 360° swivel tip for high-heat brazing.
The RTM-HT-1S reaches temperatures up to 1650°C (3000°F) with MAPP gas and includes a piezo trigger for instant operation.
With such a wide variety of welding and brazing tools available, we’re here to help you find the perfect match. Get in touch with us for more details.
Operating The Air/Fuel Torch:
1. The maximum heat zone is very concentrated. It's located between 15mm to 20mm from the end of the tip. Holding the torch too close or too far from the target will reduce the heating effect.
2. Temperature Control: To reduce the heating effect of the air/ fuel torch, several approaches are recommended:
a. Move the farther away from the target.
b. Use propane fuel instead of MAP/Pro fuel.
c. Use smaller or soldering tips-if not included in your kit, smaller or soldering tips are available as an option.
Key Features:
- Instant Auto-Ignition: Equipped with a reliable trigger-start piezo igniter for quick, one-handed operation, eliminating the need for a separate sparker.
- 360° Rotatable Tip: The stainless steel burn tube swivels a full 360 degrees, offering total control and comfort regardless of the angle of the joint.
- High-Temperature Performance: Capable of reaching temperatures up to 1,650°C (3,000°F), making it ideal for high-silver brazing and various heat-treating tasks.
- Dual Fuel Compatibility: Optimized for use with MAPP (or Map-Pro) gas for maximum heat output, but also compatible with standard Propane for lighter soldering jobs.
- Rugged Brass Construction: The internal inter-structure is built from 100% brass to prevent gas leakage and ensure long-term durability on the job site.
- Adjustable Flame Control: A precise regulating valve allows the user to fine-tune the flame size for different pipe diameters and applications.
Applications:
- HVAC & Refrigeration: Essential for welding copper and aluminum tubes in cooling systems.
- Plumbing: Perfect for soldering joints and copper pipe installation.
- Maintenance & DIY: Useful for loosening rusted bolts, heat-treating metal, and general automotive repairs.
Technical Specifications
- Connector Type: CGA600 (1" - 20 UNEF)
- Flame Type: Turbo Swirl Flame
- Safety Standards: 100% fire-tested before shipping to ensure reliable performance and safety.
