Wipcool Oil Charging Pump
WIPCOOL ELECTRIC REFRIGERATION OIL CHARGING PUMP R4
| Model |
R4 |
| Voltage |
230V~/50Hz |
| Motor Power |
1/3HP |
| Pump to System Pressure (Max.) |
16bar (232 psi) |
| Flow Rate (Max.) |
150L/h |
| Hose Connection | 1/4" & 3/8" SAE |
WIPCOOL electric oil charging pumps can pump large quantities of oils into large chillers in very short time.
WIPCOOL R1 Refrigeration Oil Charging Pump
Main Features
- Applied stainless steel materials, reliable and durable
- Anti-backflow structure, ensure system safety during charging
- Special design, ensure to connect the different size of oil bottles
- Pumps oil into the system without shutting down for charging
The R1 Refrigeration Oil Hand Charging Pump allows for the addition or removal of refrigeration oil when servicing air conditioning and refrigeration systems.
The pump can be used while the unit is operating, so there's no need to shut down the system for charging. It is compatible with one-gallon, two-and-a-half-gallon, and five-gallon containers, and it moves 1.7 fl. oz. (50ml) per stroke against 145 psi (10 bar) pressure.
| Model | R1 |
|
Max. Pump Pressure |
10 bar (145 psi) |
| Max. Pump Rate Per Stroke | 50ml |
| Applicable Oil Bottle Size | All Sizes |
| Hose Connect | 1/4" SAE |
| Outlet Hose | 1.5m Charging Hose |
| Packing & Weight | Carton:10Pcs/ 18.0 Kgs |

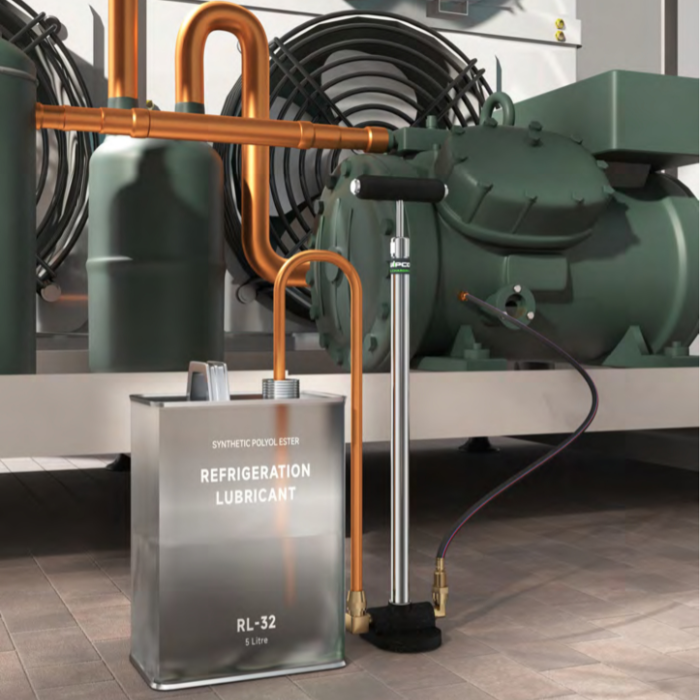

WIPCOOL R2 Refrigeration Oil Charging Pump
Main Features
- Applied stainless steel materials, reliable and durable
- Anti-backflow structure, ensure system safety during charging
- Special design, ensure to connect the different size of oil bottles
- Pumps oil into the system without shutting down for charging
The R2 oil charging pump is designed and manufactured to allow technicians to pump oil into the system while the unit is operating. There is no need to shut down the system for charging.
Features a universal stopper that automatically adjusts to all standard openings in 1, 2-1/2, and 5-gallon oil containers. Suction transfer hose and fittings are included. The pump allows you to inject oil into the compressor on the downstroke while the system is under pressure, making the process easier with a positive stroke.
| Model | R2 |
|
Max. Pump Pressure |
15 bar (218 psi) |
| Max. Pump Rate Per Stroke | 75ml |
| Applicable Oil Bottle Size | All Sizes |
| Hose Connect | 1/4" & 3/8" SAE |
| Outlet Hose | 1.5m HP Charging Hose |
| Packing & Weight | Carton:6Pcs/ 18.0 Kgs |
WIPCOOL R6 Electric Refrigeration Oil Charging Pump
| Model | R6 |
| Voltage | 230V~/50Hz |
| Motor Power | 3/4HP |
| Pump to System Pressure (Max.) | 25bar (362 psi) This is the maximum pressure that R6 can pump to inside the chiller or system. |
| Flow Rate (Max.) | 350L/h |
| Hose Connection | 1/4" & 3/8" SAE |
WIPCOOL electric oil charging pumps can pump large quantities of oils into large chillers in very short time.
