Hidria

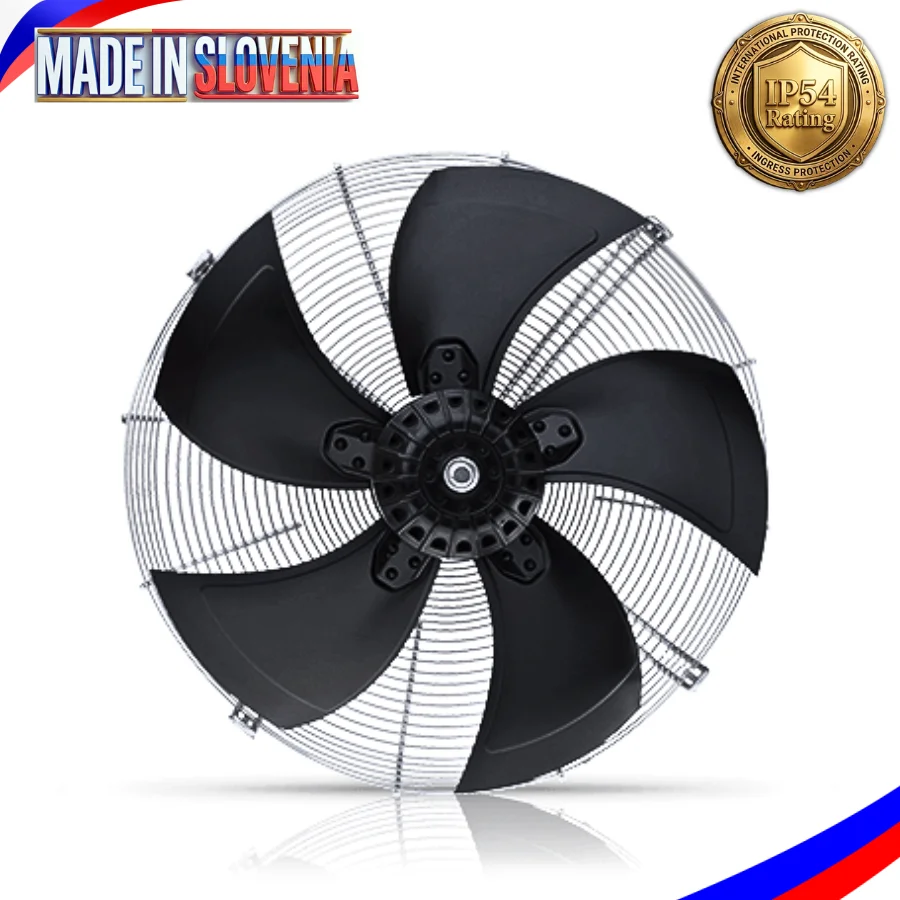

Hidria 630mm, 400V 3Ph Axial Fan

Made in Slovenia, Europe

The Hidria R13R-6330HA-6T2-7042 (internal version code: 0313-4-1147) is a high-efficiency, three-phase AC industrial axial fan designed for demanding HVAC-R, cooling, and ventilation systems. This dual-speed model utilizes a three-phase external rotor induction motor for superior efficiency and multi-speed operation.

  • Fan Type: Sucking model (axial airflow)
  • Blade Diameter: 630 mm
  • Power Supply: Three-phase 400 V AC, 50 Hz
  • Model Number :R13R-6330HA-6T2-7042 (internal version code: 0313-4-1147)

Technical Specifications Overview

This model features a 630 mm (63 cm) diameter blade configuration. Because it supports dual-speed connection wiring (Delta/Star or D/Y), its performance scales across two specific operating profiles:

Specification Field

High-Speed Mode (Delta Δ)

Low-Speed Mode (Star Y)

Power Supply

3-Phase, 400 V @ 50 Hz

3-Phase, 400 V @ 50 Hz

Nominal Speed

870 RPM

640 RPM

Input Power

 600 W to 630 W 380 W

Current Draw

1.25 A to 1.40 A

0.65 A

Max Airflow Rate

Up to 7,593 m³/h

Decreased proportionally

Max Static Pressure

107 Pa

Decreased proportionally
Environmental Standard: Compliant with ErP 2015 efficiency directives


Rotation of Propeller = Counter clockwise when viewed from above the grill

Enclosure & Operational Ratings

  • IP Rating: IP54 protection class, making it dust-protected and splash-proof against environmental elements.
  • Insulation Class: Class 155 (Class F) thermal protection.
  • Operating Ambient Temperatures: Safe for operation between -30°C and +40°C.
  • Airflow Direction: Sucking (V-Type) configuration, drawing air through the system.
